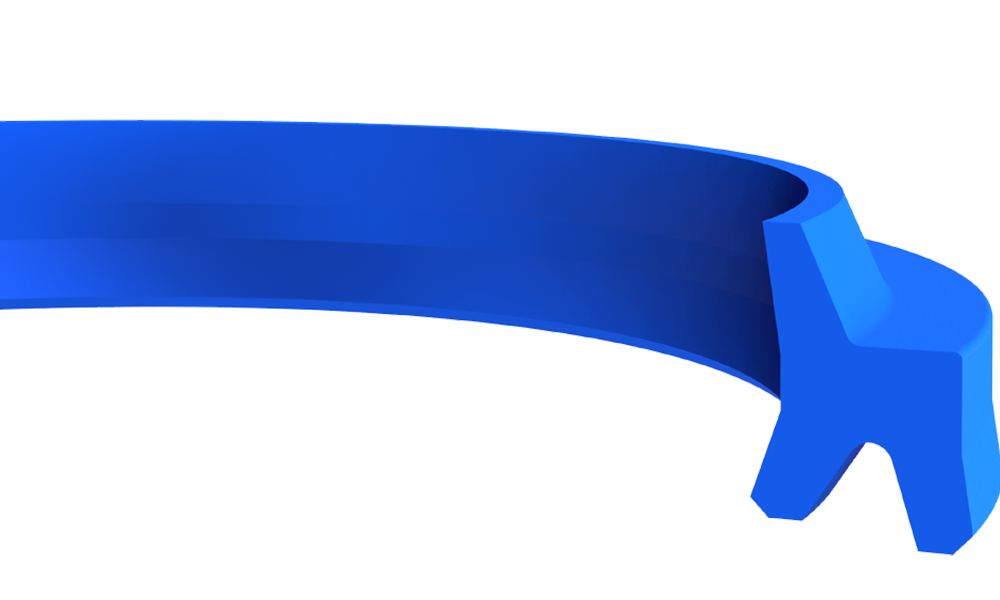

K27 - NUTRING DUDAKLI TOZ KEÇESI
K27 - NUTRING DUDAKLI TOZ KEÇESI
K27 - NUTRING DUDAKLI TOZ KEÇESI
Array
K27 nutring dudaklı toz keçeleri, özel tasarımı sayesinde hidrolik uygulamalarda dış ortamdan gelebilecek olumsuz partiküllerin silindir içine girmesini engelleyen sıyırıcı ürünlerdir. Nutring dudaklı tasarımı ile mil üzerindeki yağ filmini sıyırma özelliği bulunmaktadır. Özel takımlar kullanılarak kesme işlemi ile üretilen dudak yapısı sayesinde mil üzerinde çok iyi sıyırma özelliğine sahiptir.
Avantajları
• Özel tasarımı sayesinde olumsuz partiküllere karşı üstün koruma sağlaması
• Nutring dudaklı tasarımı ile mil üzerindeki yağ filmini sıyırma özelliği
• Kanal içinde dönmeme özelliği
• Yağ filmi kalınlığının incelmesini sağlayan kesimli nutring dudağı
• Kolay montaj yapılabilmesi
• Nutring dudaklı tasarımı ile mil üzerindeki yağ filmini sıyırma özelliği
• Kanal içinde dönmeme özelliği
• Yağ filmi kalınlığının incelmesini sağlayan kesimli nutring dudağı
• Kolay montaj yapılabilmesi
Uygulama Alanları
• Forkliftler
• İş makineleri sektörü
• Enjeksiyon tezgahları
• Tarım sektörü
• Genel endüstriyel silindirler
• İş makineleri sektörü
• Enjeksiyon tezgahları
• Tarım sektörü
• Genel endüstriyel silindirler
Malzeme
Kodu
Basınç
(max) bar
(max) bar
Sıcaklık
(max) °C
(max) °C
Kayma Hızı
(max)- m/s
(max)- m/s
PU
NBR
NBR
PU9201
NB9001
NB9001
-40/+100
-30/+105
-30/+105
1.0
| d (f8) | D (H10) | D1 (H10) | L (+0.2/-0) | L1 | H | MALZEME | KASTAŞ KOD | ||
|---|---|---|---|---|---|---|---|---|---|
| K27-008 | 8 | 14 | 11.2 | 4.3 | 6.3 | 5.5 | NB9001 | 10014689 | |
| K27-010 PU | 10 | 16.1 | 12.7 | 3.9 | 5.9 | 4.8 | PU9201 | 10014691 | |
| K27-010/1 PU | 10 | 15 | 12 | 5 | 7 | 6 | PU9201 | 10014692 | |
| K27-012 | 12 | 18 | 14.6 | 3.6 | 5.6 | 4.8 | NB9001 | 10014693 | |
| K27-012/1 | 12.76 | 20.42 | 15.62 | 5.07 | 7.07 | 6 | NB9001 | 10014695 | |
| K27-012/1 PU | 12.76 | 20.42 | 15.62 | 5.07 | 7.07 | 6 | PU9201 | 10014696 | |
| K27-013 | 13 | 20 | 16 | 5.8 | 7.8 | 7.3 | NB9001 | 10014697 | |
| K27-014 | 14 | 20 | 16.5 | 3.6 | 5.6 | 4.8 | NB9001 | 10014698 | |
| K27-014/1 PU | 14 | 20 | 16.5 | 4 | 6 | 6 | PU9201 | 10014700 | |
| K27-015 | 15.93 | 23.59 | 18.79 | 5.07 | 7.07 | 6 | NB9001 | 10014702 | |
| K27-015 PU | 15.93 | 23.59 | 18.79 | 5.07 | 7.07 | 6 | PU9201 | 10014703 | |
| K27-015/1 | 15.87 | 23.8 | 19.1 | 5.1 | 7.1 | 6 | NB9001 | 10014704 | |
| K27-015/1 PU | 15.87 | 23.8 | 19.1 | 5.1 | 7.1 | 6 | PU9201 | 10014705 | |
| K27-016 | 16 | 22 | 19 | 3.8 | 5.8 | 5.5 | NB9001 | 10014706 | |
| K27-016 PU | 16 | 22 | 19 | 3.8 | 5.8 | 5.5 | PU9201 | 10014708 | |
| K27-016/1 | 16 | 24 | 19 | 4.3 | 6.3 | 6 | NB9001 | 10014709 | |
| K27-016/2 PU | 16 | 22 | 18.5 | 3.9 | 5.9 | 5 | PU9201 | 10014712 | |
| K27-018/2 | 18 | 24.6 | 21 | 3.8 | 5.8 | 4.8 | NB9001 | 10014715 | |
| K27-018/4 PU | 18 | 26.6 | 21 | 5.3 | 7.3 | 7 | PU9201 | 10014719 | |
| K27-020 | 20 | 28.6 | 23 | 5.3 | 7.3 | 7 | NB9001 | 10014720 | |
| K27-020 PU | 20 | 28.6 | 23 | 5.3 | 7.3 | 7 | PU9201 | 10014722 | |
| K27-020/2 PU | 20 | 26 | 22.5 | 4 | 6 | 5 | PU9201 | 10014725 | |
| K27-022 | 22 | 28 | 25 | 3.9 | 5.9 | 5 | NB9001 | 10014727 | |
| K27-022 PU | 22 | 28 | 25 | 3.9 | 5.9 | 5 | PU9201 | 10014729 | |
| K27-022/1 | 22 | 30 | 25.2 | 5.3 | 7.3 | 7 | NB9001 | 10014730 | |
| K27-022/1 PU | 22 | 30 | 25.2 | 5.3 | 7.3 | 7 | PU9201 | 10014732 | |
| K27-022/3 PU | 22 | 28 | 24.5 | 4 | 6 | 5.7 | PU9201 | 10014734 | |
| K27-025 | 25 | 33.6 | 28 | 5.3 | 7.3 | 7 | NB9001 | 10014735 | |
| K27-025 PU | 25 | 33.6 | 28 | 5.3 | 7.3 | 7 | PU9201 | 10014737 | |
| K27-025/1 | 25.46 | 34.72 | 28.72 | 5.45 | 7.45 | 6.7 | NB9001 | 10014738 | |
| K27-025/1 PU | 25.46 | 34.72 | 28.72 | 5.45 | 7.45 | 6.7 | PU9201 | 10014739 | |
| K27-025/2 PU | 25 | 31 | 27.5 | 3.9 | 5.9 | 4.8 | PU9201 | 10014741 | |
| K27-028 | 28 | 36.6 | 31 | 5.3 | 7.3 | 7 | NB9001 | 10014742 | |
| K27-028 PU | 28 | 36.6 | 31 | 5.3 | 7.3 | 7 | PU9201 | 10014744 | |
| K27-028/1 | 28 | 36 | 31.2 | 4.8 | 6.8 | 5.8 | NB9001 | 10014745 | |
| K27-030 | 30 | 38.6 | 33 | 5.3 | 7.3 | 7 | NB9001 | 10014749 | |
| K27-030 PU | 30 | 38.6 | 33 | 5.3 | 7.3 | 7 | PU9201 | 10014751 | |
| K27-031.5 PU | 31.5 | 41.5 | 34.7 | 5.3 | 7.3 | 7 | PU9201 | 10014754 | |
| K27-032 PU | 32 | 40 | 35.2 | 5.3 | 7.3 | 7 | PU9201 | 10014755 | |
| K27-032/1 PU | 32 | 40 | 35.2 | 4.8 | 6.8 | 5.8 | PU9201 | 10014756 | |
| K27-034 | 34.92 | 44.45 | 38.15 | 5.45 | 7.45 | 6.7 | NB9001 | 10014757 | |
| K27-034 PU | 34.92 | 44.45 | 38.15 | 5.45 | 7.45 | 6.7 | PU9201 | 10014759 | |
| K27-035 | 35 | 43.6 | 38 | 5.3 | 7.3 | 7 | NB9001 | 10014760 | |
| K27-035 PU | 35 | 43.6 | 38 | 5.3 | 7.3 | 7 | PU9201 | 10014762 | |
| K27-035/1 PU | 35 | 45 | 38.2 | 6.3 | 8.3 | 8 | PU9201 | 10014763 | |
| K27-036 | 36 | 44.6 | 39 | 5.3 | 7.3 | 7 | NB9001 | 10014764 | |
| K27-036 PU | 36 | 44.6 | 39 | 5.3 | 7.3 | 7 | PU9201 | 10014766 | |
| K27-038 | 38 | 48 | 41.6 | 4.3 | 6.3 | 5.8 | NB9001 | 10014770 | |
| K27-038 PU | 38 | 48 | 41.6 | 4.3 | 6.3 | 5.8 | PU9201 | 10014771 | |
| K27-040 | 40 | 48.6 | 43 | 5.3 | 7.3 | 7 | NB9001 | 10014772 | |
| K27-040 PU | 40 | 48.6 | 43 | 5.3 | 7.3 | 7 | PU9201 | 10014775 | |
| K27-040/1 PU | 40 | 50 | 43.75 | 5 | 7 | 6.5 | PU9201 | 10014776 | |
| K27-042 | 42 | 50 | 45 | 5.3 | 7.3 | 7 | NB9001 | 10014778 | |
| K27-044 | 44.51 | 53.77 | 47.77 | 5.4 | 7.4 | 6.7 | NB9001 | 10014779 | |
| K27-044 PU | 44.51 | 53.77 | 47.77 | 5.4 | 7.4 | 6.7 | PU9201 | 10014782 | |
| K27-045 | 45 | 55.6 | 48.8 | 5.3 | 7.3 | 7 | NB9001 | 10014783 | |
| K27-045 PU | 45 | 55.6 | 48.8 | 5.3 | 7.3 | 7 | PU9201 | 10014785 | |
| K27-045/1 | 45 | 53.6 | 48 | 5.3 | 7.3 | 7 | NB9001 | 10014786 | |
| K27-045/1 PU | 45 | 53.6 | 48 | 5.3 | 7.3 | 7 | PU9201 | 10014788 | |
| K27-045/2 | 45 | 53 | 48 | 4.5 | 6.5 | 5.8 | NB9001 | 10014789 | |
| K27-045/2 PU | 45 | 53 | 48 | 4.5 | 6.5 | 5.8 | PU9201 | 10014791 | |
| K27-045/3 PU | 45 | 53 | 48.2 | 5.3 | 7.3 | 6.5 | PU9201 | 10014792 | |
| K27-045/4 PU | 45 | 52.9 | 49 | 5.3 | 6.3 | 6.5 | PU9201 | 10014793 | |
| K27-047 | 47.63 | 56.9 | 51.05 | 5.24 | 7.24 | 7 | NB9001 | 10014794 | |
| K27-050 | 50 | 60.6 | 53.8 | 5.3 | 7.3 | 7 | NB9001 | 10014795 | |
| K27-050 PU | 50 | 60.6 | 53.8 | 5.3 | 7.3 | 7 | PU9201 | 10014797 | |
| K27-050/2 | 50 | 58.6 | 53 | 5.3 | 7.3 | 7 | NB9001 | 10014799 | |
| K27-050/2 PU | 50 | 58.6 | 53 | 5.3 | 7.3 | 7 | PU9201 | 10014801 | |
| K27-050/3 | 50 | 58 | 53.2 | 4.8 | 6.8 | 5.8 | NB9001 | 10014802 | |
| K27-050/3 PU | 50 | 58 | 53.2 | 4.8 | 6.8 | 5.8 | PU9201 | 10014804 | |
| K27-050/4 | 50.86 | 60.12 | 54.12 | 5.45 | 7.45 | 6.7 | NB9001 | 10014805 | |
| K27-050/4 PU | 50.86 | 60.12 | 54.12 | 5.45 | 7.45 | 6.7 | PU9201 | 10014807 | |
| K27-050/5 PU | 50 | 57.9 | 54 | 5.3 | 7.3 | 6.5 | PU9201 | 10014808 | |
| K27-053 | 53.97 | 63.5 | 57.7 | 5.65 | 7.65 | 7.45 | NB9001 | 10014809 | |
| K27-055 | 55 | 65.6 | 58.8 | 5.3 | 7.3 | 7 | NB9001 | 10014811 | |
| K27-055 PU | 55 | 65.6 | 58.8 | 5.3 | 7.3 | 7 | PU9201 | 10014813 | |
| K27-055/1 PU | 55 | 63 | 58.2 | 5.3 | 7.3 | 7 | PU9201 | 10014815 | |
| K27-056 | 56 | 64 | 59.2 | 5.3 | 7.3 | 7 | NB9001 | 10014817 | |
| K27-056 PU | 56 | 64 | 59.2 | 5.3 | 7.3 | 7 | PU9201 | 10014819 | |
| K27-056/1 PU | 56 | 66 | 59 | 5.6 | 7.6 | 6.8 | PU9201 | 10014821 | |
| K27-060 | 60 | 70.6 | 63.8 | 5.3 | 7.3 | 7 | NB9001 | 10014823 | |
| K27-060 PU | 60 | 70.6 | 63.8 | 5.3 | 7.3 | 7 | PU9201 | 10014825 | |
| K27-060/3 PU | 60.3 | 68.9 | 63.3 | 6 | 8 | 8.7 | PU9201 | 10014827 | |
| K27-060/4 PU | 60 | 68.6 | 63 | 5.3 | 7.3 | 7 | PU9201 | 10014828 | |
| K27-063 | 63 | 71.6 | 66 | 5.3 | 7.3 | 7 | NB9001 | 10014829 | |
| K27-063 PU | 63 | 71.6 | 66 | 5.3 | 7.3 | 7 | PU9201 | 10014830 | |
| K27-063/1 | 63 | 73.6 | 66.8 | 5.3 | 7.3 | 7 | NB9001 | 10014831 | |
| K27-063/1 PU | 63 | 73.6 | 66.8 | 5.3 | 7.3 | 7 | PU9201 | 10014833 | |
| K27-063/2 | 63.57 | 76.12 | 66.92 | 7 | 9 | 8.65 | NB9001 | 10014834 | |
| K27-065 | 65 | 75.6 | 68.8 | 5.3 | 7.3 | 7 | NB9001 | 10014837 | |
| K27-065 PU | 65 | 75.6 | 68.8 | 5.3 | 7.3 | 7 | PU9201 | 10014838 | |
| K27-070 | 70 | 80.6 | 73.8 | 5.3 | 7.3 | 7 | NB9001 | 10014839 | |
| K27-070 PU | 70 | 80.6 | 73.8 | 5.3 | 7.3 | 7 | PU9201 | 10014841 | |
| K27-070/3 PU | 70 | 78.6 | 73.1 | 5 | 7 | 7 | PU9201 | 10014844 | |
| K27-075 | 75 | 87.2 | 81 | 7.1 | 9.1 | 12 | NB9001 | 10014845 | |
| K27-075 PU | 75 | 87.2 | 81 | 7.1 | 9.1 | 12 | PU9201 | 10014846 | |
| K27-075/1 PU | 75 | 85 | 78.1 | 5.3 | 7.3 | 7 | PU9201 | 10014847 | |
| K27-075/2 PU | 75 | 83.6 | 78 | 5.3 | 7.3 | 7 | PU9201 | 10014848 | |
| K27-076 | 76.2 | 88.9 | 82.5 | 7.05 | 9.05 | 8.65 | NB9001 | 10014850 | |
| K27-080 | 80 | 92 | 86 | 7.1 | 9.1 | 12 | NB9001 | 10014851 | |
| K27-080 PU | 80 | 92 | 86 | 7.1 | 9.1 | 12 | PU9201 | 10014853 | |
| K27-080/1 PU | 80 | 90 | 83.5 | 7.3 | 9.3 | 12 | PU9201 | 10014854 | |
| K27-080/2 PU | 80 | 88 | 88.6 | 5 | 7 | 7 | PU9201 | 10014855 | |
| K27-085 | 85 | 97.2 | 91 | 7.1 | 9.1 | 12 | NB9001 | 10014856 | |
| K27-085 PU | 85 | 97.2 | 91 | 7.1 | 9.1 | 12 | PU9201 | 10014857 | |
| K27-088 | 88.97 | 101.52 | 92.2 | 7 | 9 | 8.65 | NB9001 | 10014858 | |
| K27-090 | 90 | 102.2 | 96 | 7.1 | 9.1 | 12 | NB9001 | 10014859 | |
| K27-090 PU | 90 | 102.2 | 96 | 7.1 | 9.1 | 12 | PU9201 | 10014861 | |
| K27-090/1 | 90 | 100 | 93.2 | 6.3 | 8.3 | 8 | NB9001 | 10014862 | |
| K27-095 | 95 | 107.2 | 101 | 7.1 | 9.1 | 12 | NB9001 | 10014865 | |
| K27-095 PU | 95 | 107.2 | 101 | 7.1 | 9.1 | 12 | PU9201 | 10014866 | |
| K27-100 PU | 100 | 110.2 | 105 | 7 | 9 | 8 | PU9201 | 10014870 | |
| K27-100/1 PU | 100 | 110.2 | 103.6 | 6 | 8 | 6.8 | PU9201 | 10014871 | |
| K27-101 | 101.67 | 114.22 | 105.02 | 7.05 | 9.05 | 8.65 | NB9001 | 10014873 | |
| K27-105 PU | 105 | 117.2 | 111 | 7.2 | 9.2 | 12 | PU9201 | 10014874 | |
| K27-110 | 110 | 125.2 | 117 | 7.8 | 9.8 | 9.5 | NB9001 | 10014875 | |
| K27-110/1 PU | 110 | 120.2 | 115 | 7 | 9 | 9 | PU9201 | 10014877 | |
| K27-110/2 PU | 110 | 125.2 | 114 | 8.5 | 10.5 | 9.5 | PU9201 | 10014878 | |
| K27-110/3 PU | 110 | 122.2 | 116 | 7.2 | 9.2 | 12 | PU9201 | 10014879 | |
| K27-115 | 115 | 127.2 | 121 | 7.1 | 9.1 | 12 | NB9001 | 10014880 | |
| K27-115 PU | 115 | 127.2 | 121 | 7.1 | 9.1 | 12 | PU9201 | 10014881 | |
| K27-120 PU | 120 | 132.2 | 126 | 7.2 | 9.2 | 12 | PU9201 | 10014882 | |
| K27-125 | 125 | 140 | 129.2 | 7.6 | 9.6 | 9.5 | NB9001 | 10014883 | |
| K27-125 PU | 125 | 140 | 129.2 | 7.6 | 9.6 | 9.5 | PU9201 | 10014884 | |
| K27-125/1 PU | 125 | 138 | 132 | 7.3 | 9.3 | 9.5 | PU9201 | 10014885 | |
| K27-127 | 127 | 139.7 | 132.3 | 7.05 | 9.05 | 8.65 | NB9001 | 10014887 | |
| K27-132 PU | 132 | 145 | 139 | 7.3 | 9.3 | 9.5 | PU9201 | 10014888 | |
| K27-135 | 135 | 147.2 | 141 | 7.1 | 9.1 | 12 | NB9001 | 10014889 | |
| K27-135 PU | 135 | 147.2 | 141 | 7.1 | 9.1 | 12 | PU9201 | 10014890 | |
| K27-135/1 PU | 135 | 150 | 141.8 | 7.3 | 9.3 | 12 | PU9201 | 10014891 | |
| K27-139 | 139.7 | 152.4 | 145 | 7.05 | 9.05 | 8.65 | NB9001 | 10014892 | |
| K27-140 PU | 140 | 155 | 147.5 | 10.2 | 12.2 | 16 | PU9201 | 10014893 | |
| K27-155 | 155 | 167 | 161 | 7.1 | 9.1 | 12 | NB9001 | 10014894 | |
| K27-155 PU | 155 | 167 | 161 | 7.1 | 9.1 | 12 | PU9201 | 10014895 | |
| K27-160 | 160 | 172.2 | 166 | 7.1 | 9.1 | 12 | NB9001 | 10014896 | |
| K27-160 PU | 160 | 172.2 | 166 | 7.1 | 9.1 | 12 | PU9201 | 10014897 | |
| K27-160/1 | 160 | 175 | 166.8 | 8 | 10 | 11.5 | NB9001 | 10014898 | |
| K27-160/2 PU | 160 | 175 | 167.6 | 10.2 | 12.2 | 16 | PU9201 | 10014899 | |
| K27-185 | 185 | 197.2 | 191 | 7.1 | 9.1 | 12 | NB9001 | 10014904 | |
| K27-185 PU | 185 | 197.2 | 191 | 7.1 | 9.1 | 12 | PU9201 | 10014905 | |
| K27-200 PU | 200 | 212.2 | 206 | 7.1 | 9.1 | 12 | PU9201 | 10014907 | |
| K27-215 | 215 | 227 | 221 | 7.1 | 9.1 | 12 | NB9001 | 10014908 | |
| K27-215 PU | 215 | 227 | 221 | 7.1 | 9.1 | 12 | PU9201 | 10014909 | |
| K27-220 PU | 220 | 232.2 | 226 | 7.1 | 9.1 | 12 | PU9201 | 10014910 | |
| K27-240 | 240 | 255 | 247 | 7.1 | 9.1 | 12 | NB9001 | 10014911 | |
| K27-240 PU | 240 | 255 | 247 | 7.1 | 9.1 | 12 | PU9201 | 10014912 | |
| K27-280 | 280 | 305 | 292 | 16.5 | 17.8 | 22.5 | NB9001 | 10014914 | |
| K27-320 | 320 | 350 | 335 | 18 | 20 | 27 | NB9001 | 10014916 |
