K37 - BOĞAZ KEÇESI
K37 - BOĞAZ KEÇESI
K37 - BOĞAZ KEÇESI
Array

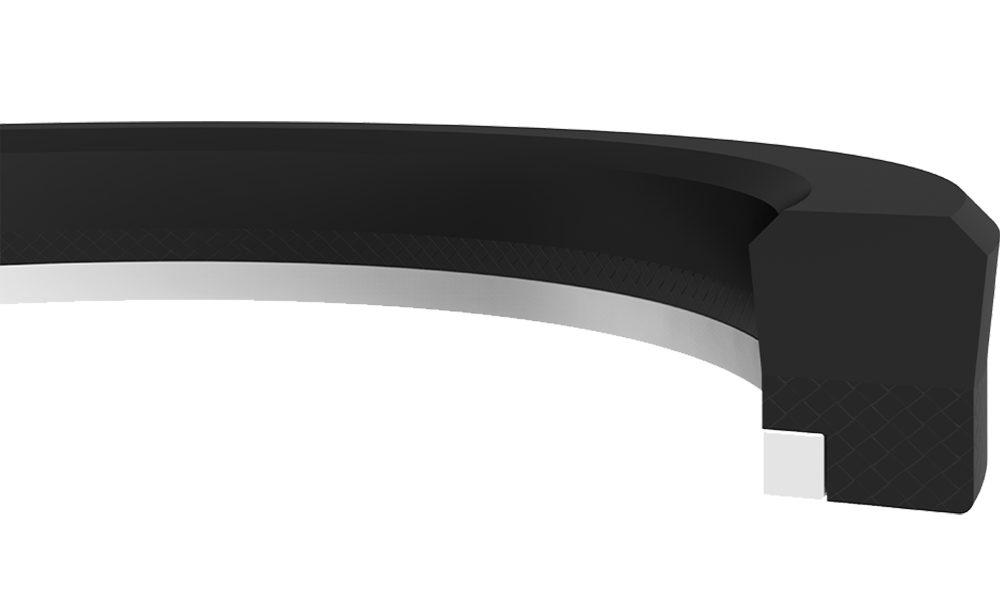

K37 boğaz keçesi, hidrolik boğaz uygulamalarında kullanılmak üzere tasarlanmış, bezli elastomer sızdırmazlık ringi ve termoplastik destek ringine sahip tek etkili boğaz sızdırmazlık elemanıdır.
Avantajları
• Düşük basınçlarda yüksek ön yükleme ve elastomer malzeme sayesinde iyi sızdırmazlık
• Destek ringi ile yüksek akma dayanımı
• Yüksek aşınma dayanımı
• Basit kanal tasarımı
• Destek ringi ile yüksek akma dayanımı
• Yüksek aşınma dayanımı
• Basit kanal tasarımı
Uygulama Alanları
• Standart hidrolik silindirler
• Presler
• Araç üstü sektörü
• Endüstriyel silindirler
• Presler
• Araç üstü sektörü
• Endüstriyel silindirler
Malzeme
Kodu
Basınç
(max) bar
(max) bar
Sıcaklık
(max) °C
(max) °C
Kayma Hızı
(max)- m/s
(max)- m/s
NBR
BEZLİ NBR
POM
BEZLİ NBR
POM
NB8001
FB8001
PM9901
FB8001
PM9901
400
-30/+100
0.5
| d (f8) | D (H9) | L (+0.2/-0) | C | MALZEME | KASTAŞ KOD | ||
|---|---|---|---|---|---|---|---|
| K37-006 | 6 | 14 | 6.5 | 5 | NB8001 | 10018129 | |
| K37-012 | 12 | 23 | 7.5 | 5 | NB8001 | 10018130 | |
| K37-015 | 15 | 27 | 7 | 5 | NB8001 | 10018131 | |
| K37-016 | 16 | 28 | 7.5 | 5 | NB8001 | 10018132 | |
| K37-016/1 | 16 | 24 | 7 | 5 | NB8001 | 10018133 | |
| K37-018 | 18 | 26 | 6.4 | 5 | NB8001 | 10018134 | |
| K37-018/1 | 18 | 28 | 6.3 | 5 | NB8001 | 10018135 | |
| K37-018/2 | 18 | 30 | 7.5 | 5 | NB8001 | 10018136 | |
| K37-020 | 20 | 30 | 8 | 5 | NB8001 | 10018137 | |
| K37-020/1 | 20 | 27 | 6 | 5 | NB8001 | 10018139 | |
| K37-020/2 | 20 | 28 | 6.3 | 5 | NB8001 | 10018140 | |
| K37-020/3 | 20 | 28 | 7 | 5 | NB8001 | 10018141 | |
| K37-020/4 | 20 | 30 | 8.5 | 5 | NB8001 | 10018142 | |
| K37-020/5 | 20 | 28 | 5.6 | 5 | NB8001 | 10018143 | |
| K37-022 | 22 | 32 | 7.5 | 5 | NB8001 | 10018145 | |
| K37-022/1 | 22 | 29 | 5 | 5 | NB8001 | 10018147 | |
| K37-022/2 | 22 | 30 | 7 | 5 | NB8001 | 10018148 | |
| K37-022/3 | 22 | 32 | 10 | 5 | NB8001 | 10018150 | |
| K37-022/4 | 22 | 34 | 9.5 | 5 | NB8001 | 10018151 | |
| K37-022/5 | 22 | 35 | 10 | 5 | NB8001 | 10018152 | |
| K37-025 | 25 | 38 | 9.5 | 5 | NB8001 | 10018153 | |
| K37-025/1 | 25 | 33 | 6 | 5 | NB8001 | 10018154 | |
| K37-025/2 | 25 | 35 | 8 | 5 | NB8001 | 10018156 | |
| K37-025/3 | 25 | 33 | 6.4 | 5 | NB8001 | 10018158 | |
| K37-025/4 | 25 | 35 | 9 | 5 | NB8001 | 10018160 | |
| K37-025/5 | 25 | 38 | 10 | 5 | NB8001 | 10018162 | |
| K37-025/6 | 25.4 | 38.1 | 10 | 5 | NB8001 | 10018163 | |
| K37-025/7 | 25 | 33 | 7 | 5 | NB8001 | 10018164 | |
| K37-028 | 28 | 38 | 8 | 5 | NB8001 | 10018165 | |
| K37-028/1 | 28 | 41 | 9.5 | 5 | NB8001 | 10018167 | |
| K37-028/2 | 28 | 36 | 6.4 | 5 | NB8001 | 10018168 | |
| K37-028/3 | 28 | 40 | 9.5 | 5 | NB8001 | 10018170 | |
| K37-028/4 | 28 | 41 | 10 | 5 | NB8001 | 10018171 | |
| K37-028/5 | 28.57 | 39.68 | 9.5 | 5 | NB8001 | 10018172 | |
| K37-030 | 30 | 40 | 10.5 | 5 | NB8001 | 10018173 | |
| K37-030/1 | 30 | 38 | 6.5 | 5 | NB8001 | 10018175 | |
| K37-030/2 | 30 | 40 | 7 | 5 | NB8001 | 10018177 | |
| K37-030/3 | 30 | 40 | 7.5 | 5 | NB8001 | 10018179 | |
| K37-030/4 | 30 | 45 | 9 | 5 | NB8001 | 10018181 | |
| K37-030/5 | 30 | 50 | 14.5 | 5 | NB8001 | 10018183 | |
| K37-031 | 31.75 | 47.62 | 11.7 | 5 | NB8001 | 10018184 | |
| K37-032 | 32 | 40 | 9 | 5 | NB8001 | 10018185 | |
| K37-032/1 | 32 | 42 | 11 | 5 | NB8001 | 10018186 | |
| K37-032/2 | 32 | 45 | 10 | 5 | NB8001 | 10018188 | |
| K37-032/3 | 32 | 40 | 5 | 5 | NB8001 | 10018189 | |
| K37-032/4 | 32 | 40 | 8.5 | 5 | NB8001 | 10018190 | |
| K37-034 | 34.92 | 50.8 | 8.6 | 5 | NB8001 | 10018191 | |
| K37-035 | 35 | 45 | 10.5 | 5 | NB8001 | 10018192 | |
| K37-035/1 | 35 | 50 | 10.5 | 5 | NB8001 | 10018194 | |
| K37-035/2 | 35 | 45 | 10 | 5 | NB8001 | 10018195 | |
| K37-035/3 | 35 | 50 | 11.5 | 5 | NB8001 | 10018197 | |
| K37-035/4 | 35 | 43 | 6 | 5 | NB8001 | 10018198 | |
| K37-036 | 36 | 43 | 6.5 | 5 | NB8001 | 10018200 | |
| K37-036/1 | 36 | 44 | 6.4 | 5 | NB8001 | 10018201 | |
| K37-036/2 | 36 | 46 | 8.5 | 5 | NB8001 | 10018202 | |
| K37-036/3 | 36 | 48 | 12 | 5 | NB8001 | 10018204 | |
| K37-036/4 | 36 | 48 | 9.5 | 5 | NB8001 | 10018205 | |
| K37-038 | 38 | 55 | 10.5 | 5 | NB8001 | 10018206 | |
| K37-038/1 | 38.1 | 50.8 | 10 | 5 | NB8001 | 10018207 | |
| K37-038/2 | 38.1 | 53.97 | 10.5 | 5 | NB8001 | 10018208 | |
| K37-040 | 40 | 50 | 10.5 | 5 | NB8001 | 10018210 | |
| K37-040/1 | 40 | 55 | 10.5 | 5 | NB8001 | 10018212 | |
| K37-040/2 | 40 | 50 | 11 | 5 | NB8001 | 10018213 | |
| K37-040/3 | 40 | 48 | 6.5 | 5 | NB8001 | 10018215 | |
| K37-040/4 | 40 | 55 | 11 | 5 | NB8001 | 10018217 | |
| K37-040/5 | 40 | 50 | 10 | 5 | NB8001 | 10018219 | |
| K37-040/6 | 40 | 50 | 8 | 5 | NB8001 | 10018221 | |
| K37-040/7 | 40 | 55 | 8 | 5 | NB8001 | 10018223 | |
| K37-040/8 | 40 | 60 | 14.5 | 5 | NB8001 | 10018225 | |
| K37-040/9 | 40 | 52 | 12 | 5 | NB8001 | 10018226 | |
| K37-042 | 42 | 52 | 9 | 5 | NB8001 | 10018227 | |
| K37-044 | 44.5 | 53.97 | 7 | 5 | NB8001 | 10018228 | |
| K37-044/1 | 44.5 | 53.97 | 7.5 | 5 | NB8001 | 10018229 | |
| K37-044/2 | 44.5 | 60.32 | 11.7 | 5 | NB8001 | 10018231 | |
| K37-045 | 45 | 55 | 10.5 | 5 | NB8001 | 10018232 | |
| K37-045/1 | 45 | 60 | 10.5 | 5 | NB8001 | 10018234 | |
| K37-045/2 | 45 | 55 | 11 | 5 | NB8001 | 10018235 | |
| K37-045/3 | 45 | 55 | 8 | 5 | NB8001 | 10018236 | |
| K37-045/4 | 45 | 55 | 7.5 | 5 | NB8001 | 10018238 | |
| K37-045/5 | 45 | 57 | 10 | 5 | NB8001 | 10018240 | |
| K37-045/6 | 45 | 65 | 14.5 | 5 | NB8001 | 10018241 | |
| K37-045/7 | 45 | 53 | 8.5 | 5 | NB8001 | 10018242 | |
| K37-045/8 | 45 | 60 | 10 | 5 | NB8001 | 10018243 | |
| K37-050 | 50 | 65 | 10.5 | 5 | NB8001 | 10018245 | |
| K37-050/1 | 50 | 62 | 10 | 5 | NB8001 | 10018247 | |
| K37-050/2 | 50 | 60 | 10.5 | 5 | NB8001 | 10018249 | |
| K37-050/3 | 50 | 60 | 10 | 5 | NB8001 | 10018251 | |
| K37-050/4 | 50 | 65 | 11 | 5 | NB8001 | 10018253 | |
| K37-050/5 | 50 | 62 | 8 | 5 | NB8001 | 10018254 | |
| K37-050/6 | 50 | 70 | 14 | 5 | NB8001 | 10018255 | |
| K37-050/7 | 50 | 60 | 7.5 | 5 | NB8001 | 10018256 | |
| K37-050/8 | 50 | 60 | 8 | 5 | NB8001 | 10018258 | |
| K37-050/9 | 50 | 70 | 14.5 | 5 | NB8001 | 10018260 | |
| K37-050/10 | 50 | 63 | 12 | 5 | NB8001 | 10018248 | |
| K37-054 | 54 | 66 | 9.5 | 5 | NB8001 | 10018262 | |
| K37-055 | 55 | 65 | 10.5 | 5 | NB8001 | 10018263 | |
| K37-055/1 | 55 | 65 | 12 | 5 | NB8001 | 10018264 | |
| K37-055/2 | 55 | 65 | 11 | 5 | NB8001 | 10018266 | |
| K37-055/3 | 55 | 75 | 14 | 5 | NB8001 | 10018267 | |
| K37-055/4 | 55 | 65 | 8 | 5 | NB8001 | 10018268 | |
| K37-055/5 | 55 | 70 | 10.5 | 5 | NB8001 | 10018269 | |
| K37-055/6 | 55 | 75 | 14.5 | 5 | NB8001 | 10018270 | |
| K37-056 | 56 | 66 | 10.5 | 5 | NB8001 | 10018271 | |
| K37-056/1 | 56 | 71 | 10.5 | 5 | NB8001 | 10018272 | |
| K37-056/2 | 56 | 76 | 14.5 | 5 | NB8001 | 10018274 | |
| K37-057 | 57.15 | 69.85 | 10 | 5 | NB8001 | 10018275 | |
| K37-060 | 60 | 70 | 10.5 | 5 | NB8001 | 10018277 | |
| K37-060/1 | 60 | 70 | 12.5 | 5 | NB8001 | 10018278 | |
| K37-060/2 | 60 | 80 | 14 | 5 | NB8001 | 10018283 | |
| K37-060/3 | 60 | 75 | 13 | 5 | NB8001 | 10018285 | |
| K37-060/4 | 60 | 75 | 12.5 | 5 | NB8001 | 10018286 | |
| K37-060/5 | 60 | 69 | 7 | 5 | NB8001 | 10018288 | |
| K37-060/6 | 60 | 70 | 11 | 5 | NB8001 | 10018289 | |
| K37-060/7 | 60 | 70 | 8 | 5 | NB8001 | 10018290 | |
| K37-060/8 | 60 | 70 | 13 | 5 | NB8001 | 10018292 | |
| K37-060/9 | 60 | 72 | 10 | 5 | NB8001 | 10018293 | |
| K37-060/11 | 60 | 80 | 14.5 | 5 | NB8001 | 10018280 | |
| K37-060/12 | 60 | 75 | 8 | 5 | NB8001 | 10018281 | |
| K37-063 | 63 | 71 | 9 | 5 | NB8001 | 10018295 | |
| K37-063/1 | 63 | 75 | 11 | 5 | NB8001 | 10018296 | |
| K37-063/2 | 63 | 78 | 12.5 | 5 | NB8001 | 10018297 | |
| K37-063/3 | 63 | 83 | 14.5 | 5 | NB8001 | 10018298 | |
| K37-063/4 | 63.5 | 82.55 | 14.5 | 5 | NB8001 | 10018299 | |
| K37-063/5 | 63.5 | 76.2 | 8.5 | 5 | NB8001 | 10018300 | |
| K37-063/6 | 63.5 | 77.78 | 11.6 | 5 | NB8001 | 10018301 | |
| K37-065 | 65 | 80 | 12.5 | 5 | NB8001 | 10018302 | |
| K37-065/1 | 65 | 75 | 12.5 | 5 | NB8001 | 10018303 | |
| K37-065/2 | 65 | 75 | 13.5 | 5 | NB8001 | 10018304 | |
| K37-065/3 | 65 | 77 | 9.6 | 5 | NB8001 | 10018305 | |
| K37-065/4 | 65 | 80 | 11.5 | 5 | NB8001 | 10018306 | |
| K37-070 | 70 | 80 | 12.5 | 5 | NB8001 | 10018307 | |
| K37-070/1 | 70 | 85 | 12 | 5 | NB8001 | 10018309 | |
| K37-070/2 | 70 | 85 | 12.5 | 5 | NB8001 | 10018311 | |
| K37-070/3 | 70 | 90 | 14 | 5 | NB8001 | 10018313 | |
| K37-070/4 | 70 | 80 | 8 | 5 | NB8001 | 10018315 | |
| K37-070/5 | 70 | 80 | 13 | 5 | NB8001 | 10018317 | |
| K37-070/6 | 70 | 82 | 10.5 | 5 | NB8001 | 10018319 | |
| K37-070/7 | 70 | 84 | 12.5 | 5 | NB8001 | 10018320 | |
| K37-070/8 | 70 | 90 | 12 | 5 | NB8001 | 10018321 | |
| K37-075 | 75 | 85 | 12.5 | 5 | NB8001 | 10018322 | |
| K37-075/1 | 75 | 90 | 11 | 5 | NB8001 | 10018323 | |
| K37-075/2 | 75 | 85 | 11 | 5 | NB8001 | 10018324 | |
| K37-075/3 | 75 | 90 | 11.5 | 5 | NB8001 | 10018325 | |
| K37-075/4 | 75 | 90 | 12.8 | 5 | NB8001 | 10018326 | |
| K37-075/5 | 75 | 95 | 14.5 | 5 | NB8001 | 10018327 | |
| K37-075/6 | 75 | 88 | 12.5 | 5 | NB8001 | 10018328 | |
| K37-075/7 | 75 | 90 | 8 | 5 | NB8001 | 10018329 | |
| K37-080 | 80 | 90 | 12.5 | 5 | NB8001 | 10018331 | |
| K37-080/1 | 80 | 100 | 12.5 | 5 | NB8001 | 10018333 | |
| K37-080/2 | 80 | 100 | 14 | 5 | NB8001 | 10018335 | |
| K37-080/3 | 80 | 95 | 12 | 5 | NB8001 | 10018336 | |
| K37-080/4 | 80 | 93 | 14.5 | 5 | NB8001 | 10018338 | |
| K37-080/5 | 80 | 96 | 10.5 | 5 | NB8001 | 10018339 | |
| K37-080/6 | 80 | 100 | 12 | 5 | NB8001 | 10018340 | |
| K37-080/7 | 80 | 100 | 14.5 | 5 | NB8001 | 10018341 | |
| K37-080/8 | 80 | 95 | 10 | 5 | NB8001 | 10018342 | |
| K37-085 | 85 | 100 | 12.5 | 5 | NB8001 | 10018343 | |
| K37-085/1 | 85 | 95 | 8 | 5 | NB8001 | 10018345 | |
| K37-085/2 | 85 | 100 | 12 | 5 | NB8001 | 10018346 | |
| K37-085/3 | 85 | 105 | 14.5 | 5 | NB8001 | 10018347 | |
| K37-088 | 88.9 | 114.3 | 19.7 | 5 | NB8001 | 10018348 | |
| K37-090 | 90 | 105 | 12.5 | 5 | NB8001 | 10018350 | |
| K37-090/1 | 90 | 110 | 12.5 | 5 | NB8001 | 10018352 | |
| K37-090/2 | 90 | 105 | 9.5 | 5 | NB8001 | 10018353 | |
| K37-090/4 | 90 | 106.2 | 11 | 5 | NB8001 | 10018356 | |
| K37-090/5 | 90 | 110 | 12 | 5 | NB8001 | 10018357 | |
| K37-095 | 95 | 105 | 11 | 5 | NB8001 | 10018359 | |
| K37-095/1 | 95 | 112 | 12 | 5 | NB8001 | 10018360 | |
| K37-095/2 | 95 | 115 | 14.5 | 5 | NB8001 | 10018361 | |
| K37-095/3 | 95 | 110 | 12 | 5 | NB8001 | 10018362 | |
| K37-095/4 | 95 | 115 | 12 | 5 | NB8001 | 10018363 | |
| K37-095/5 | 95 | 107 | 12.5 | 5 | NB8001 | 10018364 | |
| K37-100 | 100 | 115 | 12.5 | 7 | NB8001 | 10018365 | |
| K37-100/1 | 100 | 120 | 14 | 7 | NB8001 | 10018367 | |
| K37-100/2 | 100 | 125 | 20 | 7 | NB8001 | 10018369 | |
| K37-100/3 | 100 | 120 | 24.5 | 7 | NB8001 | 10018370 | |
| K37-100/4 | 100 | 115 | 11.5 | 7 | NB8001 | 10018371 | |
| K37-100/5 | 100 | 120 | 12 | 7 | NB8001 | 10018373 | |
| K37-100/6 | 100 | 120 | 14.5 | 7 | NB8001 | 10018374 | |
| K37-100/7 | 100 | 113 | 13.5 | 7 | NB8001 | 10018376 | |
| K37-105 | 105 | 115 | 11 | 7 | NB8001 | 10018377 | |
| K37-105/1 | 105 | 125 | 12.5 | 7 | NB8001 | 10018378 | |
| K37-110 | 110 | 130 | 12.5 | 7 | NB8001 | 10018379 | |
| K37-110/1 | 110 | 125 | 12 | 7 | NB8001 | 10018380 | |
| K37-110/2 | 110 | 135 | 15.5 | 7 | NB8001 | 10018381 | |
| K37-115 | 115 | 135 | 16 | 7 | NB8001 | 10018382 | |
| K37-120 | 120 | 130 | 10.5 | 7 | NB8001 | 10018384 | |
| K37-120/1 | 120 | 132.7 | 10 | 7 | NB8001 | 10018385 | |
| K37-120/2 | 120 | 135 | 12.5 | 7 | NB8001 | 10018386 | |
| K37-120/3 | 120 | 140 | 12.5 | 7 | NB8001 | 10018388 | |
| K37-120/4 | 120 | 145 | 18.8 | 7 | NB8001 | 10018389 | |
| K37-125 | 125 | 150 | 14 | 7 | NB8001 | 10018390 | |
| K37-125/1 | 125 | 150 | 14.5 | 7 | NB8001 | 10018391 | |
| K37-130 | 130 | 145 | 13 | 7 | NB8001 | 10018394 | |
| K37-130/1 | 130 | 145 | 15 | 7 | NB8001 | 10018395 | |
| K37-130/2 | 130 | 150 | 16 | 7 | NB8001 | 10018396 | |
| K37-135 | 135 | 150 | 14 | 7 | NB8001 | 10018397 | |
| K37-135/1 | 135 | 160 | 14 | 7 | NB8001 | 10018398 | |
| K37-140 | 140 | 160 | 12 | 7 | NB8001 | 10018400 | |
| K37-140/1 | 140 | 155 | 13 | 7 | NB8001 | 10018401 | |
| K37-140/2 | 140 | 160 | 14.5 | 7 | NB8001 | 10018403 | |
| K37-140/3 | 140 | 160 | 12.5 | 7 | NB8001 | 10018405 | |
| K37-140/4 | 140 | 170 | 22.8 | 7 | NB8001 | 10018406 | |
| K37-140/5 | 140 | 150 | 10.3 | 7 | NB8001 | 10018407 | |
| K37-145 | 145 | 157.7 | 10 | 7 | NB8001 | 10018408 | |
| K37-150 | 150 | 170 | 14 | 7 | NB8001 | 10018410 | |
| K37-150/1 | 150 | 170 | 14.5 | 7 | NB8001 | 10018411 | |
| K37-160 | 160 | 175 | 16 | 7 | NB8001 | 10018413 | |
| K37-160/1 | 160 | 180 | 14.5 | 7 | NB8001 | 10018414 | |
| K37-175 | 175 | 200 | 23 | 7 | NB8001 | 10018416 | |
| K37-180 | 180 | 200 | 14.5 | 7 | NB8001 | 10018419 | |
| K37-180/1 | 180 | 210 | 20.5 | 7 | NB8001 | 10018420 | |
| K37-190 | 190 | 210 | 14.5 | 7 | NB8001 | 10018421 | |
| K37-198 | 198 | 208 | 12 | 7 | NB8001 | 10018422 | |
| K37-200 | 200 | 220 | 14.5 | 10 | NB8001 | 10018423 | |
| K37-210 | 210 | 240 | 22.5 | 10 | NB8001 | 10018424 | |
| K37-220 | 220 | 250 | 20.5 | 10 | NB8001 | 10018425 | |
| K37-230 | 230 | 260 | 20.5 | 10 | NB8001 | 10018427 |
