K38 - BOĞAZ KEÇESI
K38 - BOĞAZ KEÇESI
K38 - BOĞAZ KEÇESI
Array

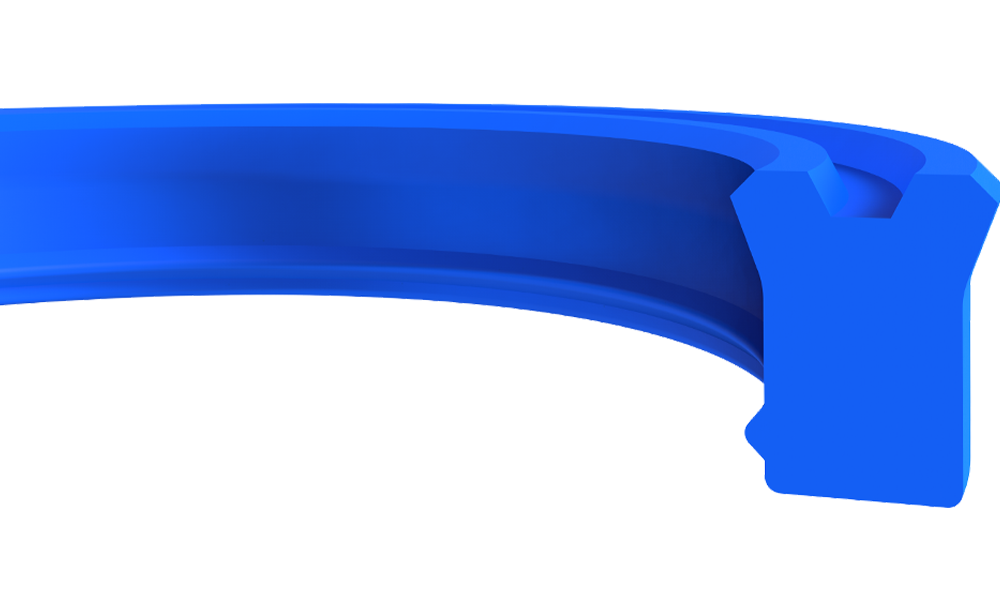

K38 boğaz keçesi, hidrolik boğaz uygulamalarında kullanılmak üzere tasarlanmıştır. Ürün, ikinci bir dudağa sahip olan, kesimli dudak yapısı ve kısa havuz ölçüsü ile iyi sızdırmazlık sağlayan bir boğaz keçesidir. Düşük basınçlarda uygun ön yüklemeye sahip yapısı ile iyi sonuçlar vermektedir.
Avantajları
• Yüksek ve düşük basınçlarda iyi sızdırmazlık özelliği
• İkinci dudak ile ana sızdırmazlık dudağına gelebilecek partikülleri engelleyen tasarım
• Yüksek aşınma dayanımı
• Kapalı kanala kolay montaj yapılabilmesi
• Küçük kanal boyutlarına uygun tasarım
• Eksenel yüklerin olduğu titreşimli sistemlerde (teleskobik) uygun tasarım
• İkinci dudak ile ana sızdırmazlık dudağına gelebilecek partikülleri engelleyen tasarım
• Yüksek aşınma dayanımı
• Kapalı kanala kolay montaj yapılabilmesi
• Küçük kanal boyutlarına uygun tasarım
• Eksenel yüklerin olduğu titreşimli sistemlerde (teleskobik) uygun tasarım
Uygulama Alanları
• Araç üstü sektörü
• Endüstriyel silindirler
• Teleskobik silindirler
• Endüstriyel silindirler
• Teleskobik silindirler
Malzeme
Kodu
Basınç
(max) bar
(max) bar
Sıcaklık
(max) °C
(max) °C
Kayma Hızı
(max)- m/s
(max)- m/s
PU
PU9401
400
-35/+100
0.5

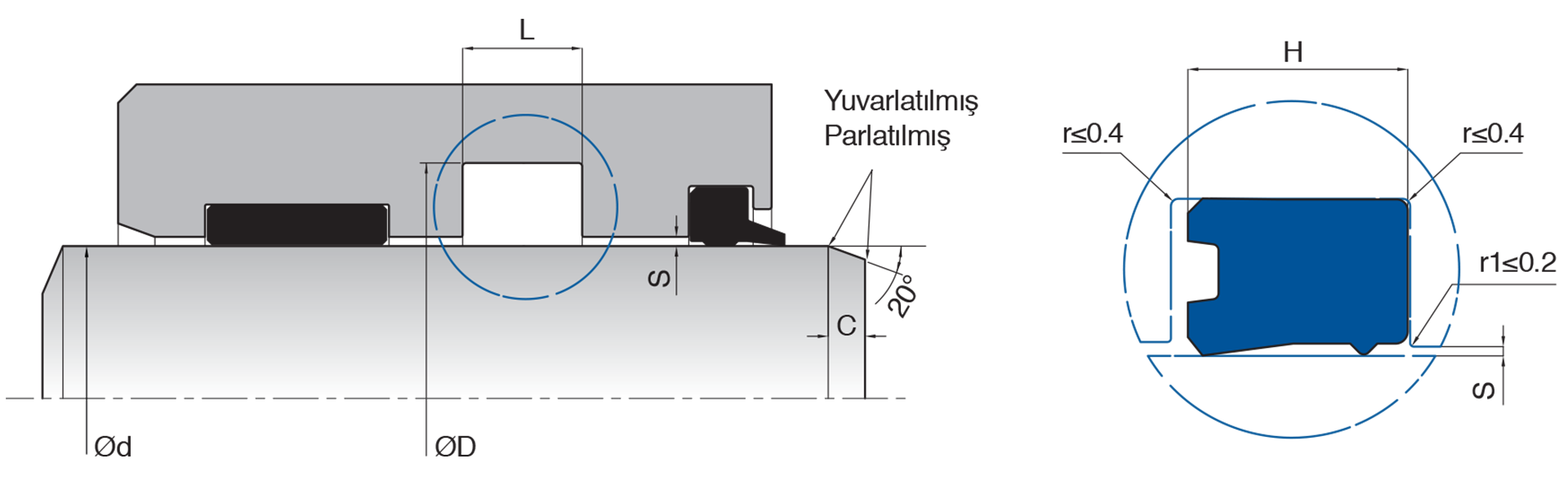

| d (f8) | D (H10) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD | ||
|---|---|---|---|---|---|---|---|---|
| K38-006 | 6 | 14 | 6.8 | 5.8 | 4.5 | PU9401 | 10018470 | |
| K38-008 | 8 | 16 | 6.8 | 5.8 | 4.5 | PU9401 | 10018471 | |
| K38-010 | 10 | 18 | 6.8 | 5.8 | 4.5 | PU9401 | 10018472 | |
| K38-010/1 | 10 | 16 | 4.5 | 4 | 3.5 | PU9401 | 10018473 | |
| K38-012 | 12 | 19 | 6.7 | 5.7 | 4 | PU9401 | 10018475 | |
| K38-012/1 | 12 | 20 | 6.8 | 5.8 | 4.5 | PU9401 | 10018476 | |
| K38-014 | 14 | 22 | 6.8 | 5.8 | 4.5 | PU9401 | 10018477 | |
| K38-015 | 15 | 21.5 | 4.7 | 4.2 | 3.5 | PU9401 | 10018478 | |
| K38-016 | 16 | 24 | 6.8 | 5.8 | 4.5 | PU9401 | 10018481 | |
| K38-016/1 | 16 | 22 | 4.5 | 4 | 3.5 | PU9401 | 10018484 | |
| K38-018 | 18 | 26 | 6.8 | 5.8 | 4.5 | PU9401 | 10018487 | |
| K38-018/1 | 18 | 26 | 9 | 8 | 4.5 | PU9401 | 10018489 | |
| K38-018/2 | 18 | 25 | 6 | 5 | 4 | PU9401 | 10018490 | |
| K38-020 | 20 | 27 | 6.8 | 5.8 | 4 | PU9401 | 10018493 | |
| K38-020/1 | 20 | 28 | 6.8 | 5.8 | 4.5 | PU9401 | 10018495 | |
| K38-020/2 | 20 | 30 | 8 | 7 | 5.5 | PU9401 | 10018497 | |
| K38-022 | 22 | 28 | 5 | 4.5 | 3.5 | PU9401 | 10018498 | |
| K38-022/1 | 22 | 30 | 6.8 | 5.8 | 4.5 | PU9401 | 10018499 | |
| K38-022/2 | 22 | 30 | 8 | 7 | 4.5 | PU9401 | 10018502 | |
| K38-022/3 | 22 | 32 | 9 | 8 | 5.5 | PU9401 | 10018503 | |
| K38-022/5 | 22.22 | 28.57 | 7 | 6.35 | 3.5 | PU9401 | 10018504 | |
| K38-022/6 | 22.23 | 28.58 | 3.5 | 3.18 | 3.5 | PU9401 | 10018505 | |
| K38-024 | 24.5 | 30 | 5 | 4.5 | 3.5 | PU9401 | 10018506 | |
| K38-025 | 25 | 33 | 6.8 | 5.8 | 4.5 | PU9401 | 10018507 | |
| K38-025/1 | 25 | 33 | 8 | 7 | 4.5 | PU9401 | 10018510 | |
| K38-025/2 | 25 | 35 | 8 | 7 | 5.5 | PU9401 | 10018511 | |
| K38-025/3 | 25 | 35 | 11 | 10 | 5.5 | PU9401 | 10018512 | |
| K38-025/4 | 25 | 35 | 9 | 8 | 5.5 | PU9401 | 10018513 | |
| K38-028 | 28 | 38 | 6.8 | 5.8 | 5.5 | PU9401 | 10018515 | |
| K38-028/1 | 28 | 38 | 8 | 7 | 5.5 | PU9401 | 10018516 | |
| K38-028/2 | 28 | 36 | 7.3 | 6.3 | 4.5 | PU9401 | 10018517 | |
| K38-028/3 | 28 | 36 | 6.8 | 5.8 | 4.5 | PU9401 | 10018520 | |
| K38-028/4 | 28 | 34 | 3.9 | 3.4 | 3.5 | PU9401 | 10018521 | |
| K38-028/5 | 28 | 36 | 6 | 5 | 4.5 | PU9401 | 10018522 | |
| K38-030 | 30 | 38 | 6.8 | 5.8 | 4.5 | PU9401 | 10018524 | |
| K38-030/1 | 30 | 38 | 9 | 8 | 4.5 | PU9401 | 10018527 | |
| K38-030/2 | 30 | 36 | 7 | 6 | 3.5 | PU9401 | 10018528 | |
| K38-030/3 | 30 | 40 | 7.5 | 6.5 | 5.5 | PU9401 | 10018529 | |
| K38-030/4 | 30 | 40 | 11 | 10 | 5.5 | PU9401 | 10018530 | |
| K38-030/5 | 30 | 40 | 8 | 7 | 5.5 | PU9401 | 10018531 | |
| K38-030/6 | 30 | 38 | 8 | 7 | 4.5 | PU9401 | 10018533 | |
| K38-031 | 31.75 | 38.1 | 7 | 6.35 | 3.5 | PU9401 | 10018535 | |
| K38-031/1 | 31.75 | 41.27 | 7 | 6.35 | 5.5 | PU9401 | 10018536 | |
| K38-032 | 32 | 40 | 9 | 8 | 4.5 | PU9401 | 10018538 | |
| K38-032/1 | 32 | 42 | 8 | 7 | 5.5 | PU9401 | 10018539 | |
| K38-032/2 | 32 | 40 | 8 | 7 | 4.5 | PU9401 | 10018540 | |
| K38-032/3 | 32 | 40 | 7.5 | 6.5 | 4.5 | PU9401 | 10018541 | |
| K38-032/4 | 32 | 42 | 9 | 8 | 5.5 | PU9401 | 10018542 | |
| K38-034 | 34 | 50 | 11 | 10 | 6 | PU9401 | 10018543 | |
| K38-034/1 | 34.93 | 44.45 | 8.7 | 7.92 | 5.5 | PU9401 | 10018544 | |
| K38-035 | 35 | 43 | 6.8 | 5.8 | 4.5 | PU9401 | 10018545 | |
| K38-035/1 | 35 | 43 | 9 | 8 | 4.5 | PU9401 | 10018547 | |
| K38-035/2 | 35 | 45 | 11 | 10 | 5.5 | PU9401 | 10018549 | |
| K38-035/3 | 35 | 50 | 11 | 10 | 6 | PU9401 | 10018550 | |
| K38-035/4 | 35 | 45 | 8 | 7 | 5.5 | PU9401 | 10018551 | |
| K38-036 | 36 | 44 | 6.8 | 5.8 | 4.5 | PU9401 | 10018552 | |
| K38-036/1 | 36 | 44 | 9 | 8 | 4.5 | PU9401 | 10018555 | |
| K38-037 | 37 | 47 | 11 | 10 | 5.5 | PU9401 | 10018557 | |
| K38-038 | 38 | 50 | 9.5 | 8.5 | 5.5 | PU9401 | 10018558 | |
| K38-038/1 | 38.1 | 47.62 | 8.7 | 7.92 | 5.5 | PU9401 | 10018559 | |
| K38-038/2 | 38.1 | 47.62 | 7 | 6.35 | 5.5 | PU9401 | 10018560 | |
| K38-040 | 40 | 48 | 6.8 | 5.8 | 4.5 | PU9401 | 10018561 | |
| K38-040/1 | 40 | 48 | 9 | 8 | 4.5 | PU9401 | 10018563 | |
| K38-040/2 | 40 | 50 | 8 | 7 | 5.5 | PU9401 | 10018565 | |
| K38-040/3 | 40 | 50 | 11 | 10 | 5.5 | PU9401 | 10018567 | |
| K38-040/4 | 40 | 55 | 11 | 10 | 6 | PU9401 | 10018568 | |
| K38-040/5 | 40 | 60 | 11 | 10 | 6.5 | PU9401 | 10018569 | |
| K38-040/6 | 40 | 50 | 9 | 8 | 5.5 | PU9401 | 10018570 | |
| K38-040/7 | 40 | 48 | 7 | 6 | 4.5 | PU9401 | 10018571 | |
| K38-042 | 42 | 50 | 7 | 6 | 4.5 | PU9401 | 10018572 | |
| K38-042/1 | 42 | 52 | 9 | 8 | 5.5 | PU9401 | 10018573 | |
| K38-044 | 44.45 | 53.97 | 8.7 | 7.92 | 5.5 | PU9401 | 10018574 | |
| K38-045 | 45 | 53 | 6.8 | 5.8 | 4.5 | PU9401 | 10018575 | |
| K38-045/1 | 45 | 55 | 6.8 | 5.8 | 5.5 | PU9401 | 10018577 | |
| K38-045/2 | 45 | 55 | 8 | 7 | 5.5 | PU9401 | 10018578 | |
| K38-045/3 | 45 | 55 | 11 | 10 | 5.5 | PU9401 | 10018579 | |
| K38-045/4 | 45 | 52 | 13 | 12 | 4 | PU9401 | 10018580 | |
| K38-045/5 | 45 | 53 | 9 | 8 | 4.5 | PU9401 | 10018581 | |
| K38-045/6 | 45 | 53 | 7.3 | 6.3 | 4.5 | PU9401 | 10018583 | |
| K38-046 | 46 | 54 | 9 | 8 | 4.5 | PU9401 | 10018585 | |
| K38-048 | 48 | 60 | 7 | 6 | 5.5 | PU9401 | 10018587 | |
| K38-050 | 50 | 58 | 9 | 8 | 4.5 | PU9401 | 10018589 | |
| K38-050/1 | 50 | 60 | 8 | 7 | 5.5 | PU9401 | 10018590 | |
| K38-050/2 | 50 | 60 | 10 | 9 | 5.5 | PU9401 | 10018593 | |
| K38-050/3 | 50 | 60 | 11 | 10 | 5.5 | PU9401 | 10018594 | |
| K38-050/4 | 50 | 65 | 11 | 10 | 6 | PU9401 | 10018596 | |
| K38-050/5 | 50 | 70 | 14.5 | 13.5 | 6.5 | PU9401 | 10018597 | |
| K38-050/6 | 50.8 | 60.32 | 8.7 | 7.92 | 5.5 | PU9401 | 10018598 | |
| K38-050/7 | 50.8 | 63.5 | 7 | 6.35 | 5.5 | PU9401 | 10018599 | |
| K38-050/8 | 50 | 63 | 10 | 9 | 5.5 | PU9401 | 10018600 | |
| K38-050/9 | 50 | 63 | 11 | 10 | 5.5 | PU9401 | 10018601 | |
| K38-055 | 55 | 63 | 9 | 8 | 4.5 | PU9401 | 10018602 | |
| K38-055/1 | 55 | 65 | 11 | 10 | 5.5 | PU9401 | 10018604 | |
| K38-055/2 | 55 | 65 | 13 | 12 | 5.5 | PU9401 | 10018605 | |
| K38-055/3 | 55 | 65 | 9 | 8 | 5.5 | PU9401 | 10018606 | |
| K38-055/4 | 55 | 65 | 8 | 7 | 5.5 | PU9401 | 10018607 | |
| K38-056 | 56 | 66 | 7.5 | 6.5 | 5.5 | PU9401 | 10018608 | |
| K38-056/1 | 56 | 71 | 12.5 | 11.5 | 6 | PU9401 | 10018610 | |
| K38-056/2 | 56 | 64 | 9 | 8 | 4.5 | PU9401 | 10018611 | |
| K38-057 | 57.15 | 66.67 | 10.5 | 9.52 | 5.5 | PU9401 | 10018612 | |
| K38-057/1 | 57.15 | 66.68 | 9.4 | 8.51 | 5.5 | PU9401 | 10018613 | |
| K38-060 | 60 | 68 | 9 | 8 | 4.5 | PU9401 | 10018615 | |
| K38-060/1 | 60 | 70 | 8.5 | 7.5 | 5.5 | PU9401 | 10018617 | |
| K38-060/2 | 60 | 70 | 11 | 10 | 5.5 | PU9401 | 10018618 | |
| K38-060/3 | 60 | 70 | 12.5 | 11.5 | 5.5 | PU9401 | 10018620 | |
| K38-060/4 | 60 | 72 | 10 | 9 | 5.5 | PU9401 | 10018621 | |
| K38-060/5 | 60 | 68 | 13 | 12 | 4.5 | PU9401 | 10018622 | |
| K38-060/6 | 60 | 70 | 8 | 7 | 5.5 | PU9401 | 10018623 | |
| K38-060/7 | 60 | 68 | 8 | 7 | 4.5 | PU9401 | 10018624 | |
| K38-060/8 | 60 | 68 | 7.3 | 6.3 | 4.5 | PU9401 | 10018625 | |
| K38-061 | 61 | 69 | 9 | 8 | 4.5 | PU9401 | 10018628 | |
| K38-063 | 63 | 71 | 9 | 8 | 4.5 | PU9401 | 10018630 | |
| K38-063/1 | 63.5 | 73.02 | 10.5 | 9.52 | 5.5 | PU9401 | 10018631 | |
| K38-063/2 | 63 | 75 | 9.6 | 8.6 | 5.5 | PU9401 | 10018632 | |
| K38-065 | 65 | 73 | 9 | 8 | 4.5 | PU9401 | 10018633 | |
| K38-065/1 | 65 | 75 | 13.5 | 12.5 | 5.5 | PU9401 | 10018635 | |
| K38-068 | 68 | 76 | 9 | 8 | 4.5 | PU9401 | 10018637 | |
| K38-069 | 69.85 | 79.38 | 10.5 | 9.52 | 5.5 | PU9401 | 10018638 | |
| K38-070 | 70 | 78 | 9 | 8 | 4.5 | PU9401 | 10018639 | |
| K38-070/1 | 70 | 80 | 13 | 12 | 5.5 | PU9401 | 10018640 | |
| K38-070/2 | 70 | 85 | 12.5 | 11.5 | 6 | PU9401 | 10018642 | |
| K38-070/3 | 70 | 82 | 10 | 9 | 5.5 | PU9401 | 10018644 | |
| K38-070/4 | 70 | 80 | 7.5 | 6.5 | 5.5 | PU9401 | 10018646 | |
| K38-070/5 | 70 | 80 | 8 | 7 | 5.5 | PU9401 | 10018647 | |
| K38-074 | 74 | 82 | 9 | 8 | 4.5 | PU9401 | 10018649 | |
| K38-075 | 75 | 83 | 9 | 8 | 4.5 | PU9401 | 10018650 | |
| K38-075/1 | 75 | 85 | 9 | 8 | 5.5 | PU9401 | 10018652 | |
| K38-075/2 | 75 | 85 | 8 | 7 | 5.5 | PU9401 | 10018653 | |
| K38-075/3 | 75 | 83 | 7.5 | 6.5 | 4.5 | PU9401 | 10018654 | |
| K38-075/4 | 75 | 83 | 7.3 | 6.3 | 4.5 | PU9401 | 10018655 | |
| K38-076 | 76 | 84 | 9 | 8 | 4.5 | PU9401 | 10018656 | |
| K38-076/1 | 76.2 | 85.72 | 10.5 | 9.52 | 5.5 | PU9401 | 10018658 | |
| K38-078 | 78 | 86 | 13 | 12 | 4.5 | PU9401 | 10018659 | |
| K38-080 | 80 | 88 | 9 | 8 | 4.5 | PU9401 | 10018661 | |
| K38-080/1 | 80 | 90 | 11 | 10 | 5.5 | PU9401 | 10018663 | |
| K38-080/2 | 80 | 90 | 13 | 12 | 5.5 | PU9401 | 10018664 | |
| K38-080/3 | 80 | 95 | 12.5 | 11.5 | 6 | PU9401 | 10018666 | |
| K38-080/4 | 80 | 96 | 10.5 | 9.5 | 6 | PU9401 | 10018667 | |
| K38-080/5 | 80 | 92 | 10 | 9 | 5.5 | PU9401 | 10018668 | |
| K38-085 | 85 | 93 | 9 | 8 | 4.5 | PU9401 | 10018670 | |
| K38-085/1 | 85 | 95 | 13 | 12 | 5.5 | PU9401 | 10018671 | |
| K38-086 | 86 | 101 | 13 | 12 | 6 | PU9401 | 10018672 | |
| K38-088 | 88 | 96 | 9 | 8 | 4.5 | PU9401 | 10018674 | |
| K38-088/1 | 88.9 | 101.6 | 10.5 | 9.52 | 5.5 | PU9401 | 10018676 | |
| K38-090 | 90 | 98 | 9 | 8 | 4.5 | PU9401 | 10018680 | |
| K38-090/1 | 90 | 102 | 10 | 9 | 5.5 | PU9401 | 10018682 | |
| K38-090/2 | 90 | 105 | 12.5 | 11.5 | 6 | PU9401 | 10018683 | |
| K38-090/3 | 90 | 110 | 15 | 14 | 6.5 | PU9401 | 10018684 | |
| K38-090/4 | 90 | 98 | 7.5 | 6.5 | 4.5 | PU9401 | 10018685 | |
| K38-091 | 91 | 99 | 9 | 8 | 4.5 | PU9401 | 10018686 | |
| K38-092 | 92 | 100 | 7.3 | 6.3 | 4.5 | PU9401 | 10018688 | |
| K38-095 | 95 | 103 | 9 | 8 | 4.5 | PU9401 | 10018690 | |
| K38-095/1 | 95 | 105 | 9 | 8 | 5.5 | PU9401 | 10018692 | |
| K38-097 | 97 | 105 | 14 | 13 | 4.5 | PU9401 | 10018693 | |
| K38-097/1 | 97 | 105 | 13 | 12 | 4.5 | PU9401 | 10018694 | |
| K38-100 | 100 | 108 | 12.5 | 11.5 | 4.5 | PU9401 | 10018699 | |
| K38-100/1 | 100 | 115 | 13 | 12 | 6 | PU9401 | 10018700 | |
| K38-100/2 | 100 | 120 | 16 | 15 | 6.5 | PU9401 | 10018702 | |
| K38-100/3 | 100 | 108 | 9 | 8 | 4.5 | PU9401 | 10018703 | |
| K38-101 | 101.6 | 114.3 | 10.5 | 9.52 | 5.5 | PU9401 | 10018704 | |
| K38-104 | 104 | 112 | 9 | 8 | 4.5 | PU9401 | 10018705 | |
| K38-105 | 105 | 113 | 9 | 8 | 5.5 | PU9401 | 10018706 | |
| K38-106 | 106 | 116 | 9 | 8 | 4.5 | PU9401 | 10018707 | |
| K38-107 | 107 | 115 | 9 | 8 | 4.5 | PU9401 | 10018708 | |
| K38-108 | 108 | 116 | 9 | 8 | 6.5 | PU9401 | 10018710 | |
| K38-110 | 110 | 130 | 16 | 15 | 6 | PU9401 | 10018711 | |
| K38-110/1 | 110 | 125 | 10.5 | 9.5 | 6 | PU9401 | 10018712 | |
| K38-112 | 112 | 127 | 13 | 12 | 4.5 | PU9401 | 10018713 | |
| K38-114 | 114.3 | 127 | 10.5 | 9.53 | 5.5 | PU9401 | 10018714 | |
| K38-115 | 115 | 123 | 9 | 8 | 5.5 | PU9401 | 10018715 | |
| K38-115/1 | 115 | 125 | 9 | 8 | 5 | PU9401 | 10018716 | |
| K38-115/2 | 115 | 124 | 16 | 15 | 4.5 | PU9401 | 10018717 | |
| K38-115/3 | 115 | 123 | 12.5 | 11.5 | 4.5 | PU9401 | 10018718 | |
| K38-118 | 118 | 126 | 14 | 13 | 4.5 | PU9401 | 10018720 | |
| K38-120 | 120 | 128 | 12.5 | 11.5 | 6 | PU9401 | 10018722 | |
| K38-120/1 | 120 | 135 | 16 | 15 | 3.5 | PU9401 | 10018723 | |
| K38-122 | 122 | 128 | 9 | 8 | 6.5 | PU9401 | 10018724 | |
| K38-125 | 125 | 145 | 19 | 15 | 4.5 | PU9401 | 10018725 | |
| K38-126 | 126 | 134 | 9 | 8 | 4.5 | PU9401 | 10018726 | |
| K38-135 | 135 | 143 | 12.5 | 11.5 | 5.5 | PU9401 | 10018729 | |
| K38-135/1 | 135 | 145 | 9 | 8 | 3.5 | PU9401 | 10018730 | |
| K38-139 | 139.7 | 152.4 | 10.5 | 9.53 | 5.5 | PU9401 | 10018732 | |
| K38-142 | 142 | 148 | 9 | 8 | 4.5 | PU9401 | 10018733 | |
| K38-145 | 145 | 153 | 9 | 8 | 4.5 | PU9401 | 10018734 | |
| K38-155 | 155 | 163 | 12.5 | 11.5 | 6 | PU9401 | 10018737 | |
| K38-155/1 | 155 | 170 | 12.5 | 11.5 | 5.5 | PU9401 | 10018738 | |
| K38-160 | 160 | 170 | 9 | 8 | 4.5 | PU9401 | 10018740 | |
| K38-165 | 165 | 173 | 9 | 8 | 5.5 | PU9401 | 10018742 | |
| K38-166 | 166 | 176 | 13 | 12 | 4.5 | PU9401 | 10018744 | |
| K38-171 | 171.45 | 184.15 | 10.5 | 9.53 | 5.5 | PU9401 | 10018746 | |
| K38-175 | 175 | 183 | 12.5 | 11.5 | 5.5 | PU9401 | 10018747 | |
| K38-180 | 180 | 190 | 12 | 11 | 5.5 | PU9401 | 10018748 | |
| K38-185 | 185 | 195 | 9 | 8 | 5.5 | PU9401 | 10018750 | |
| K38-208 | 208 | 218 | 9 | 8 | 5.5 | PU9401 | 10018753 | |
| K38-210 | 210 | 220 | 12 | 11 | 5.5 | PU9401 | 10018755 | |
| K38-212 | 212 | 223 | 9 | 8 | 5.5 | PU9401 | 10018756 | |
| K38-220 | 220 | 230 | 12.5 | 11.5 | 5.5 | PU9401 | 10018758 |
