K69 - BOĞAZ YATAKLAMALARI
K69 - BOĞAZ YATAKLAMALARI
K69 - BOĞAZ YATAKLAMALARI
Array

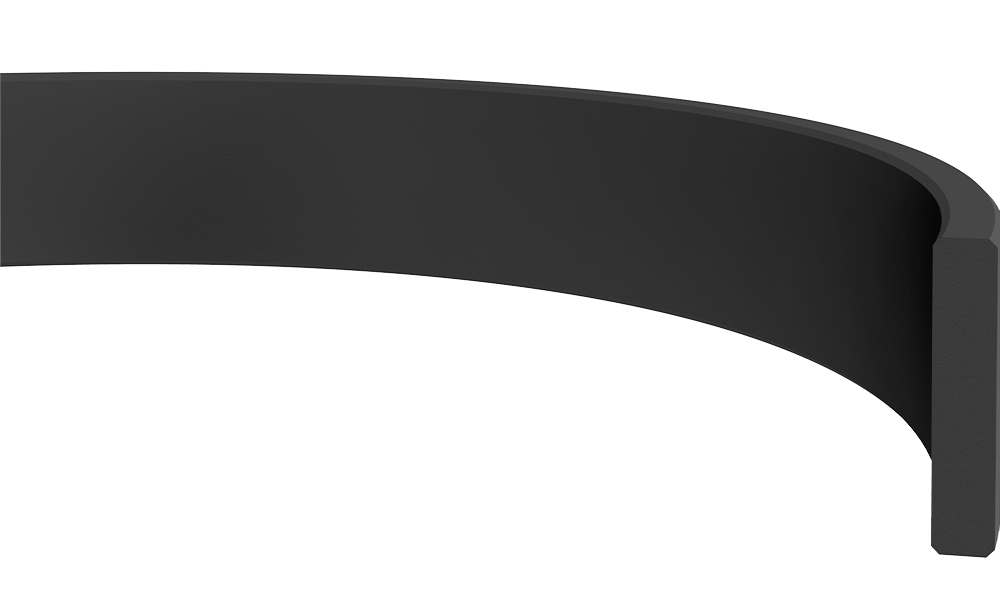

K69 piston yataklamaları, hidrolik silindirlerin piston uygulamalarında kullanılmak üzere tasarlanmış yataklama elemanlarıdır. Cam elyaf katkısı ile yük taşıma kapasiteleri arttırılmış termoplastik malzemeden üretilmektedirler.
Avantajları
• «K» aralığı sayesinde hidrodinamik basınç oluşumunu engellemesi
• Kolay montaj yapılabilmesi
• Çalışma sıcaklığı aralığında ölçü stabilitesinin yüksek olması
• Pahlı kenarları sayesinde kanal köşe radyuslarına temas etmemesi
• Geniş ölçü yelpazesi
• Ekonomik çözüm sunması
• Kolay montaj yapılabilmesi
• Çalışma sıcaklığı aralığında ölçü stabilitesinin yüksek olması
• Pahlı kenarları sayesinde kanal köşe radyuslarına temas etmemesi
• Geniş ölçü yelpazesi
• Ekonomik çözüm sunması
Uygulama Alanları
• İş makineleri sektörü
• Vinçler
• Enjeksiyon tezgâhları
• Tarım sektörü
• Hafif ve orta hizmet silindirleri
• Vinçler
• Enjeksiyon tezgâhları
• Tarım sektörü
• Hafif ve orta hizmet silindirleri
Malzeme
Kodu
Basınç
(max) bar
(max) bar
Sıcaklık
(max) °C
(max) °C
Kayma Hızı
(max)- m/s
(max)- m/s
POM
PM9902
-40/+110
1.0
| D (H8) | d (h8) | d1 (h9) | L (+0.2/-0) | H | MALZEME | KASTAŞ KOD | ||
|---|---|---|---|---|---|---|---|---|
| K69-020 | 20 | 16 | 19.6 | 9.6 | 9.4 | PM9902 | 10022809 | |
| K69-020/1 | 20 | 17 | 19.6 | 3.2 | 3 | PM9902 | 10022811 | |
| K69-022 | 22 | 18 | 21.6 | 9.6 | 9.4 | PM9902 | 10022812 | |
| K69-025 | 25 | 21 | 24.6 | 9.7 | 9.5 | PM9902 | 10022814 | |
| K69-025/1 | 25 | 21 | 24.6 | 8.2 | 8 | PM9902 | 10022815 | |
| K69-025/2 | 25 | 22 | 24.6 | 4.2 | 4 | PM9902 | 10022816 | |
| K69-025/3 | 25 | 21.9 | 24.6 | 4 | 3.8 | PM9902 | 10022817 | |
| K69-025/4 | 25 | 22 | 24.6 | 5.8 | 5.6 | PM9902 | 10022818 | |
| K69-030 | 30 | 26 | 29.6 | 9.7 | 9.5 | PM9902 | 10022820 | |
| K69-030/1 | 30 | 25 | 29.5 | 5.6 | 5.4 | PM9902 | 10022821 | |
| K69-030/2 | 30 | 27 | 29.6 | 10 | 9.8 | PM9902 | 10022822 | |
| K69-030/3 | 30 | 27 | 29.6 | 5 | 4.8 | PM9902 | 10022823 | |
| K69-030/4 | 30 | 25 | 29.5 | 15.2 | 15 | PM9902 | 10022824 | |
| K69-032 | 32 | 28 | 31.6 | 9.7 | 9.5 | PM9902 | 10022827 | |
| K69-032/1 | 32 | 26 | 31.4 | 9.9 | 9.7 | PM9902 | 10022829 | |
| K69-032/2 | 32 | 28.9 | 31.6 | 4 | 3.8 | PM9902 | 10022831 | |
| K69-032/3 | 32 | 27 | 31.5 | 5.6 | 5.4 | PM9902 | 10022832 | |
| K69-033 | 33 | 28 | 32.5 | 5.7 | 5.5 | PM9902 | 10022833 | |
| K69-033/1 | 33 | 28 | 32.5 | 9.7 | 9.5 | PM9902 | 10022834 | |
| K69-034 | 34 | 28 | 33.4 | 9.7 | 9.5 | PM9902 | 10022835 | |
| K69-035 | 35 | 30 | 34.5 | 15.2 | 15 | PM9902 | 10022836 | |
| K69-035/1 | 35 | 31 | 34.6 | 9.7 | 9.5 | PM9902 | 10022837 | |
| K69-035/2 | 35 | 29 | 34.4 | 9.7 | 9.5 | PM9902 | 10022838 | |
| K69-035/3 | 35 | 29 | 34.4 | 10 | 9.8 | PM9902 | 10022839 | |
| K69-035/4 | 35.1 | 32 | 34.7 | 4 | 3.8 | PM9902 | 10022840 | |
| K69-035/5 | 35 | 30 | 34.5 | 9.7 | 9.5 | PM9902 | 10022841 | |
| K69-035/6 | 35 | 30 | 34.5 | 5.6 | 5.4 | PM9902 | 10022842 | |
| K69-035/7 | 35 | 30 | 34.5 | 8.2 | 8 | PM9902 | 10022843 | |
| K69-036 | 36 | 33 | 35.6 | 4 | 3.8 | PM9902 | 10022844 | |
| K69-037 | 37 | 32 | 36.5 | 5.7 | 5.5 | PM9902 | 10022845 | |
| K69-040 | 40 | 35 | 39.5 | 15.2 | 15 | PM9902 | 10022847 | |
| K69-040/1 | 40 | 36 | 39.6 | 9.7 | 9.5 | PM9902 | 10022848 | |
| K69-040/2 | 40 | 34 | 39.4 | 9.9 | 9.7 | PM9902 | 10022850 | |
| K69-040/3 | 40 | 35 | 39.5 | 5.6 | 5.4 | PM9902 | 10022851 | |
| K69-040/4 | 40 | 35 | 39.5 | 6.3 | 6.1 | PM9902 | 10022852 | |
| K69-040/5 | 40 | 35 | 39.5 | 9.7 | 9.5 | PM9902 | 10022854 | |
| K69-040/6 | 40 | 34 | 39.4 | 9.7 | 9.5 | PM9902 | 10022855 | |
| K69-040/7 | 40 | 36 | 39.6 | 6.4 | 6.2 | PM9902 | 10022856 | |
| K69-041 | 41 | 36 | 40.5 | 9.7 | 9.5 | PM9902 | 10022857 | |
| K69-041/1 | 41 | 38 | 40.6 | 21 | 20.8 | PM9902 | 10022858 | |
| K69-041/2 | 41 | 35 | 40.4 | 20 | 19.8 | PM9902 | 10022859 | |
| K69-041/3 | 41 | 36 | 40.5 | 5.6 | 5.4 | PM9902 | 10022860 | |
| K69-045 | 45 | 40 | 44.5 | 15.2 | 15 | PM9902 | 10022863 | |
| K69-045/1 | 45 | 41 | 44.6 | 9.7 | 9.5 | PM9902 | 10022864 | |
| K69-045/2 | 45 | 40 | 44.5 | 9.7 | 9.5 | PM9902 | 10022865 | |
| K69-045/3 | 45 | 41 | 44.6 | 10.2 | 10 | PM9902 | 10022866 | |
| K69-045/4 | 45 | 39 | 44.4 | 10 | 9.8 | PM9902 | 10022867 | |
| K69-045/5 | 45 | 40 | 44.5 | 20.2 | 20 | PM9902 | 10022868 | |
| K69-045/6 | 45 | 40 | 44.5 | 10 | 9.8 | PM9902 | 10022869 | |
| K69-045/7 | 45 | 40 | 44.5 | 5.6 | 5.4 | PM9902 | 10022870 | |
| K69-045/8 | 45 | 40 | 44.5 | 9.8 | 9.6 | PM9902 | 10022871 | |
| K69-045/9 | 45 | 40 | 44.5 | 9.9 | 9.7 | PM9902 | 10022872 | |
| K69-046 | 46 | 41 | 45.5 | 5.6 | 5.4 | PM9902 | 10022873 | |
| K69-046/1 | 46 | 40 | 45.4 | 13 | 12.8 | PM9902 | 10022874 | |
| K69-049 | 49 | 45 | 48.6 | 20 | 19.8 | PM9902 | 10022875 | |
| K69-050 | 50 | 45 | 49.5 | 15.2 | 15 | PM9902 | 10022876 | |
| K69-050/1 | 50 | 44 | 49.4 | 9.7 | 9.5 | PM9902 | 10022880 | |
| K69-050/2 | 50 | 45 | 49.5 | 9.7 | 9.5 | PM9902 | 10022882 | |
| K69-050/3 | 50 | 45 | 49.5 | 5.6 | 5.4 | PM9902 | 10022883 | |
| K69-050/4 | 50 | 46 | 49.6 | 15.2 | 15 | PM9902 | 10022884 | |
| K69-050/5 | 50 | 43.5 | 49.4 | 5.8 | 5.6 | PM9902 | 10022885 | |
| K69-050.8 | 50.8 | 44.45 | 50.2 | 19.25 | 19.05 | PM9902 | 10022878 | |
| K69-050.8/1 | 50.8 | 44.45 | 50.2 | 6.55 | 6.35 | PM9902 | 10022879 | |
| K69-053 | 53 | 47 | 52.4 | 13 | 12.8 | PM9902 | 10022886 | |
| K69-055 | 55 | 50 | 54.5 | 15.2 | 15 | PM9902 | 10022887 | |
| K69-055/1 | 55 | 49 | 54.4 | 12.7 | 12.5 | PM9902 | 10022888 | |
| K69-055/2 | 55 | 50 | 54.5 | 8.2 | 8 | PM9902 | 10022889 | |
| K69-055/3 | 55 | 50 | 54.5 | 20.2 | 20 | PM9902 | 10022890 | |
| K69-055/4 | 55 | 50 | 54.5 | 9.7 | 9.5 | PM9902 | 10022891 | |
| K69-055/5 | 55 | 49 | 54.4 | 9.5 | 9.3 | PM9902 | 10022892 | |
| K69-055/6 | 55 | 49 | 54.4 | 9.9 | 9.7 | PM9902 | 10022893 | |
| K69-055/7 | 55 | 51 | 54.6 | 10 | 9.8 | PM9902 | 10022894 | |
| K69-055/8 | 55 | 50 | 54.5 | 5.6 | 5.4 | PM9902 | 10022895 | |
| K69-055/9 | 55 | 50 | 54.5 | 9.9 | 9.7 | PM9902 | 10022896 | |
| K69-057.15 | 57.15 | 50.8 | 56.55 | 19.25 | 19.05 | PM9902 | 10022898 | |
| K69-060 | 60 | 55 | 59.5 | 15.2 | 15 | PM9902 | 10022900 | |
| K69-060/1 | 60 | 54 | 59.4 | 12.7 | 12.5 | PM9902 | 10022901 | |
| K69-060/2 | 60 | 54 | 59.4 | 9.5 | 9.3 | PM9902 | 10022906 | |
| K69-060/3 | 60 | 55 | 59.5 | 9.7 | 9.5 | PM9902 | 10022908 | |
| K69-060/4 | 60 | 56 | 59.6 | 9.8 | 9.6 | PM9902 | 10022909 | |
| K69-060/5 | 60 | 56 | 59.6 | 10.2 | 10 | PM9902 | 10022910 | |
| K69-060/6 | 60 | 54 | 59.4 | 5.6 | 5.4 | PM9902 | 10022911 | |
| K69-060/7 | 60 | 55 | 59.5 | 5.8 | 5.6 | PM9902 | 10022912 | |
| K69-060/8 | 60 | 55 | 59.5 | 9.9 | 9.7 | PM9902 | 10022913 | |
| K69-060/9 | 60 | 56 | 59.6 | 8.1 | 7.9 | PM9902 | 10022914 | |
| K69-060/10 | 60 | 55 | 59.5 | 7.2 | 7 | PM9902 | 10022902 | |
| K69-060/11 | 60 | 55 | 59.5 | 13.2 | 13 | PM9902 | 10022903 | |
| K69-060/12 | 60 | 55 | 59.5 | 20.2 | 20 | PM9902 | 10022904 | |
| K69-062 | 62 | 56 | 61.4 | 20.2 | 20 | PM9902 | 10022916 | |
| K69-062/1 | 62 | 56 | 61.4 | 9.7 | 9.5 | PM9902 | 10022917 | |
| K69-063 | 63 | 57 | 62.4 | 12.7 | 12.5 | PM9902 | 10022918 | |
| K69-063/1 | 63 | 58 | 62.5 | 10 | 9.8 | PM9902 | 10022919 | |
| K69-063/2 | 63 | 58 | 62.5 | 9.7 | 9.5 | PM9902 | 10022922 | |
| K69-063/3 | 63 | 59 | 62.6 | 9.7 | 9.5 | PM9902 | 10022923 | |
| K69-063/4 | 63 | 57 | 62.4 | 10 | 9.8 | PM9902 | 10022924 | |
| K69-063/5 | 63 | 58 | 62.5 | 5.6 | 5.4 | PM9902 | 10022925 | |
| K69-063/6 | 63 | 58 | 62.5 | 6.3 | 6.1 | PM9902 | 10022926 | |
| K69-063/7 | 63 | 57 | 62.4 | 9.7 | 9.5 | PM9902 | 10022927 | |
| K69-064 | 64 | 60 | 63.6 | 19.5 | 19.3 | PM9902 | 10022929 | |
| K69-064/1 | 64 | 60 | 63.6 | 10.2 | 10 | PM9902 | 10022930 | |
| K69-065 | 65 | 60 | 64.5 | 15.2 | 15 | PM9902 | 10022931 | |
| K69-065/1 | 65 | 59 | 64.4 | 12.7 | 12.5 | PM9902 | 10022932 | |
| K69-065/2 | 65 | 60 | 64.5 | 9.7 | 9.5 | PM9902 | 10022936 | |
| K69-065/3 | 65 | 62 | 64.6 | 20 | 19.8 | PM9902 | 10022937 | |
| K69-065/4 | 65 | 60 | 64.5 | 5.5 | 5.3 | PM9902 | 10022938 | |
| K69-065/5 | 65 | 60 | 64.5 | 8.2 | 8 | PM9902 | 10022939 | |
| K69-065/7 | 65 | 60 | 64.5 | 9.9 | 9.7 | PM9902 | 10022941 | |
| K69-065/8 | 65 | 60 | 64.5 | 5.7 | 5.5 | PM9902 | 10022942 | |
| K69-065/9 | 65 | 60 | 64.5 | 9.5 | 9.3 | PM9902 | 10022943 | |
| K69-066 | 66 | 60 | 65.4 | 9.7 | 9.5 | PM9902 | 10022944 | |
| K69-068 | 68 | 63 | 67.5 | 9.7 | 9.5 | PM9902 | 10022946 | |
| K69-069 | 69 | 63 | 68.4 | 30.2 | 30 | PM9902 | 10022948 | |
| K69-070 | 70 | 65 | 69.5 | 15.2 | 15 | PM9902 | 10022949 | |
| K69-070/1 | 70 | 64 | 69.4 | 12.7 | 12.5 | PM9902 | 10022950 | |
| K69-070/2 | 70 | 65 | 69.5 | 9.7 | 9.5 | PM9902 | 10022954 | |
| K69-070/3 | 70 | 66 | 69.6 | 10 | 9.8 | PM9902 | 10022955 | |
| K69-070/4 | 70 | 65 | 69.5 | 5.6 | 5.4 | PM9902 | 10022956 | |
| K69-070/5 | 70 | 65 | 69.5 | 7 | 6.8 | PM9902 | 10022957 | |
| K69-070/7 | 70 | 64 | 69.4 | 10.2 | 10 | PM9902 | 10022959 | |
| K69-070/8 | 70 | 65 | 69.5 | 7.2 | 7 | PM9902 | 10022961 | |
| K69-070/9 | 70 | 65 | 69.5 | 9.9 | 9.7 | PM9902 | 10022962 | |
| K69-072 | 72 | 67 | 71.5 | 5.6 | 5.4 | PM9902 | 10022963 | |
| K69-075 | 75 | 70 | 74.5 | 15.2 | 15 | PM9902 | 10022964 | |
| K69-075/1 | 75 | 69 | 74.4 | 12.7 | 12.5 | PM9902 | 10022965 | |
| K69-075/2 | 75 | 70 | 74.5 | 9.7 | 9.5 | PM9902 | 10022967 | |
| K69-075/3 | 75 | 70 | 74.5 | 5.6 | 5.4 | PM9902 | 10022968 | |
| K69-075/4 | 75 | 70 | 74.5 | 30.2 | 30 | PM9902 | 10022969 | |
| K69-075/5 | 75 | 70 | 74.5 | 9.9 | 9.7 | PM9902 | 10022970 | |
| K69-075/6 | 75 | 70 | 74.5 | 20.2 | 20 | PM9902 | 10022971 | |
| K69-076.20 | 76.2 | 69.85 | 75.6 | 19.25 | 19.05 | PM9902 | 10022974 | |
| K69-080 | 80 | 75 | 79.5 | 15.2 | 15 | PM9902 | 10022977 | |
| K69-080/1 | 80 | 74 | 79.4 | 12.7 | 12.5 | PM9902 | 10022978 | |
| K69-080/2 | 80 | 75 | 79.5 | 8.2 | 8 | PM9902 | 10022987 | |
| K69-080/3 | 80 | 75 | 79.5 | 9.7 | 9.5 | PM9902 | 10022989 | |
| K69-080/4 | 80 | 76 | 79.6 | 15.2 | 15 | PM9902 | 10022990 | |
| K69-080/5 | 80 | 72 | 79.4 | 6.2 | 6 | PM9902 | 10022991 | |
| K69-080/6 | 80 | 75 | 79.5 | 5.6 | 5.4 | PM9902 | 10022992 | |
| K69-080/7 | 80 | 74 | 79.4 | 12.2 | 12 | PM9902 | 10022993 | |
| K69-080/8 | 80 | 75 | 79.5 | 9.9 | 9.7 | PM9902 | 10022994 | |
| K69-080/9 | 80 | 75 | 79.5 | 25.2 | 25 | PM9902 | 10022995 | |
| K69-080/10 | 80 | 74 | 79.4 | 9.9 | 9.7 | PM9902 | 10022981 | |
| K69-080/11 | 80 | 75 | 79.5 | 15 | 14.8 | PM9902 | 10022982 | |
| K69-080/13 | 80 | 75 | 79.5 | 20 | 19.8 | PM9902 | 10022984 | |
| K69-080/15 | 80 | 76 | 79.6 | 9.7 | 9.5 | PM9902 | 10022986 | |
| K69-083 | 83 | 75 | 82.4 | 9.7 | 9.5 | PM9902 | 10022996 | |
| K69-085 | 85 | 80 | 84.5 | 15.2 | 15 | PM9902 | 10022998 | |
| K69-085/1 | 85 | 79 | 84.4 | 12.7 | 12.5 | PM9902 | 10022999 | |
| K69-085/2 | 85 | 80 | 84.5 | 9.7 | 9.5 | PM9902 | 10023000 | |
| K69-085/3 | 85 | 80 | 84.5 | 20 | 19.8 | PM9902 | 10023001 | |
| K69-085/4 | 85 | 80 | 84.5 | 5.6 | 5.4 | PM9902 | 10023002 | |
| K69-085/5 | 85 | 80 | 84.5 | 9.9 | 9.7 | PM9902 | 10023003 | |
| K69-085/6 | 85 | 77 | 84.4 | 19.9 | 19.7 | PM9902 | 10023004 | |
| K69-086 | 86 | 80 | 85.4 | 30.2 | 30 | PM9902 | 10023005 | |
| K69-090 | 90 | 85 | 89.5 | 15.2 | 15 | PM9902 | 10023007 | |
| K69-090/1 | 90 | 84 | 89.4 | 12.7 | 12.5 | PM9902 | 10023008 | |
| K69-090/2 | 90 | 85 | 89.5 | 5.7 | 5.5 | PM9902 | 10023011 | |
| K69-090/3 | 90 | 85 | 89.5 | 9.9 | 9.7 | PM9902 | 10023012 | |
| K69-090/4 | 90 | 85 | 89.5 | 9.7 | 9.5 | PM9902 | 10023013 | |
| K69-090/5 | 90 | 84 | 89.4 | 25 | 24.8 | PM9902 | 10023014 | |
| K69-090/6 | 90 | 85 | 89.5 | 15 | 14.8 | PM9902 | 10023015 | |
| K69-090/7 | 90 | 84 | 89.4 | 15.2 | 15 | PM9902 | 10023016 | |
| K69-090/8 | 90 | 84 | 89.4 | 19.7 | 19.5 | PM9902 | 10023017 | |
| K69-094 | 94 | 90 | 93.6 | 15.2 | 15 | PM9902 | 10023019 | |
| K69-095 | 95 | 90 | 94.5 | 15.2 | 15 | PM9902 | 10023021 | |
| K69-095/1 | 95 | 89 | 94.4 | 12.7 | 12.5 | PM9902 | 10023022 | |
| K69-095/2 | 95 | 90 | 94.5 | 9.7 | 9.5 | PM9902 | 10023023 | |
| K69-095/3 | 95 | 90 | 94.5 | 9.9 | 9.7 | PM9902 | 10023024 | |
| K69-095/4 | 95 | 90 | 94.5 | 9.5 | 9.3 | PM9902 | 10023025 | |
| K69-096/2 | 96 | 90 | 95.4 | 30.2 | 30 | PM9902 | 10023029 | |
| K69-096/3 | 95 | 90 | 94.5 | 12.8 | 12.6 | PM9902 | 10023030 | |
| K69-100 | 100 | 95 | 99.5 | 15.2 | 15 | PM9902 | 10023032 | |
| K69-100/1 | 100 | 94 | 99.4 | 12.7 | 12.5 | PM9902 | 10023033 | |
| K69-100/2 | 100 | 95 | 99.5 | 5.6 | 5.4 | PM9902 | 10023038 | |
| K69-100/3 | 100 | 96 | 99.6 | 10.2 | 10 | PM9902 | 10023040 | |
| K69-100/4 | 100 | 94 | 99.4 | 13 | 12.8 | PM9902 | 10023041 | |
| K69-100/5 | 100 | 95 | 99.5 | 9.7 | 9.5 | PM9902 | 10023042 | |
| K69-100/6 | 100 | 95 | 99.5 | 10.2 | 10 | PM9902 | 10023043 | |
| K69-100/7 | 100 | 95 | 99.5 | 15 | 14.8 | PM9902 | 10023044 | |
| K69-100/9 | 100 | 94 | 99.4 | 15 | 14.8 | PM9902 | 10023045 | |
| K69-100/10 | 100 | 95 | 99.5 | 9.5 | 9.3 | PM9902 | 10023035 | |
| K69-100/11 | 100 | 94 | 99.4 | 25 | 24.8 | PM9902 | 10023036 | |
| K69-100/12 | 100 | 94 | 99.4 | 15.2 | 15 | PM9902 | 10023037 | |
| K69-103 | 103 | 95 | 102.4 | 9.7 | 9.5 | PM9902 | 10023046 | |
| K69-104 | 104 | 100 | 103.6 | 15.2 | 15 | PM9902 | 10023047 | |
| K69-105 | 105 | 100 | 104.5 | 15.2 | 15 | PM9902 | 10023048 | |
| K69-105/1 | 105 | 101 | 104.6 | 15.2 | 15 | PM9902 | 10023049 | |
| K69-105/2 | 105 | 100 | 104.5 | 9.9 | 9.7 | PM9902 | 10023050 | |
| K69-105/3 | 105 | 100 | 104.5 | 15 | 14.8 | PM9902 | 10023051 | |
| K69-105/4 | 105 | 100 | 104.5 | 9.5 | 9.3 | PM9902 | 10023052 | |
| K69-105/5 | 105 | 99 | 104.4 | 15 | 14.8 | PM9902 | 10023053 | |
| K69-110 | 110 | 104 | 109.4 | 12.7 | 12.5 | PM9902 | 10023055 | |
| K69-110/1 | 110 | 105 | 109.5 | 9.7 | 9.5 | PM9902 | 10023056 | |
| K69-110/2 | 110 | 106 | 109.6 | 14.9 | 14.7 | PM9902 | 10023060 | |
| K69-110/3 | 110 | 104 | 109.4 | 10.2 | 10 | PM9902 | 10023061 | |
| K69-110/6 | 110 | 105 | 109.5 | 15 | 14.8 | PM9902 | 10023063 | |
| K69-110/8 | 110 | 105 | 109.5 | 9.9 | 9.7 | PM9902 | 10023064 | |
| K69-110/9 | 110 | 104 | 109.4 | 15 | 14.8 | PM9902 | 10023065 | |
| K69-110/10 | 110 | 105 | 109.5 | 9.5 | 9.3 | PM9902 | 10023057 | |
| K69-110/11 | 110 | 104 | 109.4 | 15.2 | 15 | PM9902 | 10023058 | |
| K69-110/12 | 110 | 104 | 109.4 | 24.7 | 24.5 | PM9902 | 10023059 | |
| K69-115 | 115 | 109 | 114.4 | 12.7 | 12.5 | PM9902 | 10023066 | |
| K69-115/1 | 115 | 110 | 114.5 | 9.7 | 9.5 | PM9902 | 10023067 | |
| K69-115/2 | 115 | 105 | 114.4 | 17 | 16.8 | PM9902 | 10023068 | |
| K69-115/4 | 115 | 110 | 114.5 | 20.2 | 20 | PM9902 | 10023070 | |
| K69-115/5 | 115 | 110 | 114.5 | 9.5 | 9.3 | PM9902 | 10023071 | |
| K69-115/6 | 115 | 110 | 114.5 | 15 | 14.8 | PM9902 | 10023072 | |
| K69-115/7 | 115 | 109 | 114.4 | 19.2 | 19 | PM9902 | 10023073 | |
| K69-120 | 120 | 114 | 119.4 | 12.7 | 12.5 | PM9902 | 10023076 | |
| K69-120/1 | 120 | 115 | 119.5 | 15.2 | 15 | PM9902 | 10023077 | |
| K69-120/2 | 120 | 115 | 119.5 | 9.7 | 9.5 | PM9902 | 10023078 | |
| K69-120/3 | 120 | 115 | 119.5 | 15 | 14.8 | PM9902 | 10023079 | |
| K69-120/4 | 120 | 114 | 119.4 | 15 | 14.8 | PM9902 | 10023080 | |
| K69-120/5 | 120 | 115 | 119.5 | 9.5 | 9.3 | PM9902 | 10023081 | |
| K69-125 | 125 | 120 | 124.5 | 15.2 | 15 | PM9902 | 10023082 | |
| K69-125/1 | 125 | 119 | 124.4 | 12.7 | 12.5 | PM9902 | 10023083 | |
| K69-125/2 | 125 | 120 | 124.5 | 9.7 | 9.5 | PM9902 | 10023085 | |
| K69-125/4 | 125 | 119 | 124.4 | 15.2 | 15 | PM9902 | 10023086 | |
| K69-125/6 | 125 | 120 | 124.5 | 9.9 | 9.7 | PM9902 | 10023087 | |
| K69-125/7 | 125 | 119 | 124.4 | 15 | 14.8 | PM9902 | 10023088 | |
| K69-125/8 | 125 | 121 | 124.6 | 10 | 9.8 | PM9902 | 10023089 | |
| K69-125/9 | 125 | 120 | 124.5 | 9.5 | 9.3 | PM9902 | 10023090 | |
| K69-125/10 | 125 | 119 | 124.4 | 20.2 | 20 | PM9902 | 10023084 | |
| K69-130 | 130 | 124 | 129.4 | 12.7 | 12.5 | PM9902 | 10023091 | |
| K69-130/1 | 130 | 125 | 129.5 | 15.2 | 15 | PM9902 | 10023092 | |
| K69-130/2 | 130 | 125 | 129.5 | 7.2 | 7 | PM9902 | 10023093 | |
| K69-130/3 | 130 | 125 | 129.5 | 15 | 14.8 | PM9902 | 10023094 | |
| K69-130/5 | 130 | 123 | 129.4 | 15 | 14.8 | PM9902 | 10023096 | |
| K69-130/4 | 130 | 125 | 129.5 | 9.9 | 9.7 | PM9902 | 10023095 | |
| K69-135 | 135 | 130 | 134.5 | 15.2 | 15 | PM9902 | 10023098 | |
| K69-135/1 | 135 | 129 | 134.4 | 12.8 | 12.6 | PM9902 | 10023099 | |
| K69-135/2 | 135 | 130 | 134.5 | 12.5 | 12.3 | PM9902 | 10023100 | |
| K69-135/3 | 135 | 128 | 134.4 | 25 | 24.8 | PM9902 | 10023101 | |
| K69-135/4 | 135 | 129 | 134.4 | 19.2 | 19 | PM9902 | 10023102 | |
| K69-139 | 139.7 | 133.35 | 139.1 | 9.72 | 9.52 | PM9902 | 10023103 | |
| K69-140 | 140 | 134 | 139.4 | 12.7 | 12.5 | PM9902 | 10023104 | |
| K69-140/1 | 140 | 135 | 139.5 | 9.7 | 9.5 | PM9902 | 10023105 | |
| K69-140/2 | 140 | 135 | 139.5 | 15.2 | 15 | PM9902 | 10023106 | |
| K69-140/3 | 140 | 133 | 139.4 | 15.2 | 15 | PM9902 | 10023107 | |
| K69-140/4 | 140 | 133 | 139.4 | 20 | 19.8 | PM9902 | 10023108 | |
| K69-140/5 | 140 | 133 | 139.4 | 14.9 | 14.7 | PM9902 | 10023109 | |
| K69-140/6 | 140 | 135 | 139.5 | 9.5 | 9.3 | PM9902 | 10023110 | |
| K69-140/7 | 140 | 134 | 139.4 | 20.2 | 20 | PM9902 | 10023111 | |
| K69-140/8 | 140 | 135 | 139.5 | 15 | 14.8 | PM9902 | 10023112 | |
| K69-145 | 145 | 140 | 144.5 | 15.2 | 15 | PM9902 | 10023113 | |
| K69-145/1 | 145 | 140 | 144.5 | 9.9 | 9.7 | PM9902 | 10023115 | |
| K69-145/2 | 145 | 140 | 144.5 | 25 | 24.8 | PM9902 | 10023116 | |
| K69-150 | 150 | 144 | 149.4 | 12.7 | 12.5 | PM9902 | 10023117 | |
| K69-150/1 | 150 | 144 | 149.4 | 19.2 | 19 | PM9902 | 10023118 | |
| K69-150/2 | 150 | 145 | 149.5 | 9.7 | 9.5 | PM9902 | 10023119 | |
| K69-150/3 | 150 | 146 | 149.6 | 10.2 | 10 | PM9902 | 10023120 | |
| K69-150/4 | 150 | 143 | 149.4 | 20 | 19.8 | PM9902 | 10023121 | |
| K69-150/5 | 150 | 145 | 149.5 | 9.5 | 9.3 | PM9902 | 10023122 | |
| K69-150/6 | 150 | 145 | 149.5 | 15.2 | 15 | PM9902 | 10023123 | |
| K69-154 | 154 | 150 | 153.6 | 15.2 | 15 | PM9902 | 10023125 | |
| K69-156 | 156 | 150 | 155.4 | 19.2 | 19 | PM9902 | 10023127 | |
| K69-160 | 160 | 155 | 159.5 | 15.2 | 15 | PM9902 | 10023129 | |
| K69-160/1 | 160 | 154 | 159.4 | 19.2 | 19 | PM9902 | 10023130 | |
| K69-160/2 | 160 | 155 | 159.5 | 9.7 | 9.5 | PM9902 | 10023131 | |
| K69-160/4 | 160 | 152 | 159.4 | 15.2 | 15 | PM9902 | 10023133 | |
| K69-160/5 | 160 | 153 | 159.4 | 19.7 | 19.5 | PM9902 | 10023134 | |
| K69-165 | 165 | 160 | 164.5 | 15.2 | 15 | PM9902 | 10023135 | |
| K69-165/1 | 165 | 159 | 164.4 | 29.7 | 29.5 | PM9902 | 10023136 | |
| K69-166 | 166 | 160 | 165.4 | 12.7 | 12.5 | PM9902 | 10023137 | |
| K69-170 | 170 | 165 | 169.5 | 15.2 | 15 | PM9902 | 10023139 | |
| K69-170/1 | 170 | 162 | 169.4 | 19.7 | 19.5 | PM9902 | 10023140 | |
| K69-175 | 175 | 170 | 174.5 | 15.2 | 15 | PM9902 | 10023141 | |
| K69-180 | 180 | 174 | 179.4 | 19.2 | 19 | PM9902 | 10023143 | |
| K69-180/1 | 180 | 175 | 179.5 | 9.7 | 9.5 | PM9902 | 10023144 | |
| K69-180/2 | 180 | 172 | 179.4 | 15 | 14.8 | PM9902 | 10023145 | |
| K69-185 | 185 | 180 | 184.5 | 15.2 | 15 | PM9902 | 10023146 | |
| K69-190 | 190 | 185 | 189.5 | 15.2 | 15 | PM9902 | 10023147 | |
| K69-190/1 | 190 | 182 | 189.4 | 24.7 | 24.5 | PM9902 | 10023148 | |
| K69-195 | 195 | 190 | 194.5 | 15.2 | 15 | PM9902 | 10023149 | |
| K69-200 | 200 | 194 | 199.4 | 19.2 | 19 | PM9902 | 10023150 | |
| K69-200/1 | 200 | 195 | 199.5 | 15.2 | 15 | PM9902 | 10023151 | |
| K69-200/2 | 200 | 192 | 199.4 | 15 | 14.8 | PM9902 | 10023152 | |
| K69-210 | 210 | 205 | 209.5 | 9.9 | 9.7 | PM9902 | 10023154 | |
| K69-220 | 220 | 214 | 219.4 | 19.2 | 19 | PM9902 | 10023155 | |
| K69-225 | 225 | 219 | 224.4 | 19.2 | 19 | PM9902 | 10023156 | |
| K69-225/1 | 225 | 220 | 224.5 | 25 | 24.8 | PM9902 | 10023157 | |
| K69-226 | 226 | 220 | 225.4 | 19.2 | 19 | PM9902 | 10023158 | |
| K69-250 | 250 | 244 | 249.4 | 19.2 | 19 | PM9902 | 10023159 |
