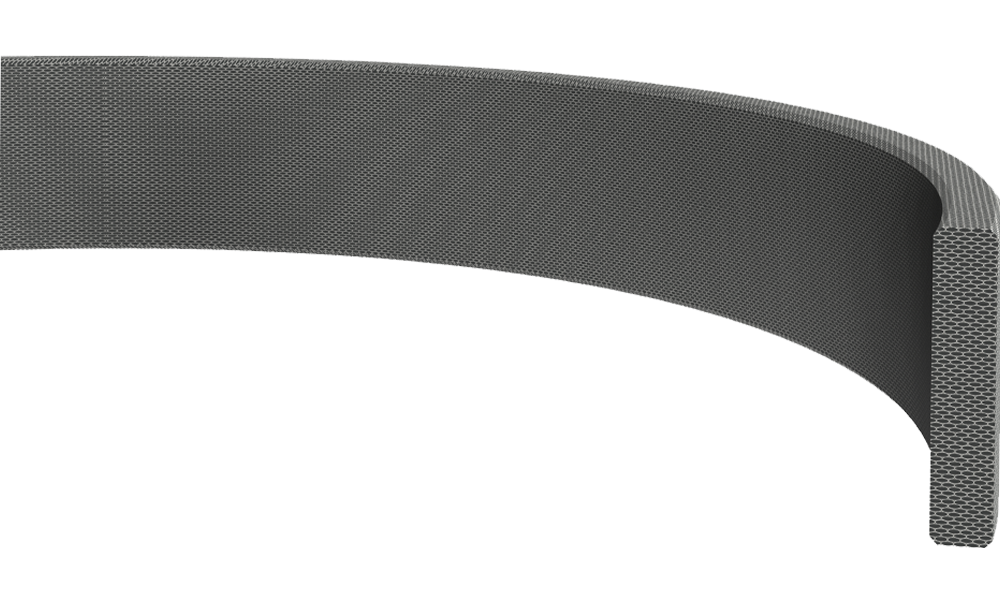

K78 piston - boğaz yataklamaları, hidrolik sistemlerde boğaz ve piston uygulamalarında kullanılmak üzere tasarlanmış yataklama elemanlarıdır. Aramid malzeme sayesinde yüksek sıcaklık ve yüksek eksenel kuvvetlerin olduğu sistemlerde güvenle kullanılabilir.

	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	MALZEME	KASTAŞ KOD
K78-030	30	35	9.7	9.5	33.2	31.8	PH6504	20006637
K78-032	32	37	9.7	9.5	35.2	33.8	PH6504	20006638
K78-035	35	40	9.7	9.5	38.2	36.8	PH6504	20006639
K78-035/1	35	40	15	14.8	38.2	36.8	PH6504	20006640
K78-040	40	45	9.7	9.5	43.2	41.8	PH6504	20001215
K78-040/1	40	45	15	14.8	43.2	41.8	PH6504	20006641
K78-045/1	45	50	15	14.8	48.2	46.8	PH6504	20006642
K78-050	50	55	9.7	9.5	53.2	51.8	PH6504	20001216
K78-050/1	50	55	15	14.8	53.2	51.8	PH6504	20001217
K78-055	55	60	15	14.8	58.2	56.8	PH6504	20001220
K78-055/1	55	60	9.7	9.5	58.2	56.8	PH6504	20001221
K78-058	58	63	9.7	9.5	61.2	59.8	PH6504	20001222
K78-060	60	65	15	14.8	63.2	61.8	PH6504	20001224
K78-060/1	60	65	9.7	9.5	63.2	61.8	PH6504	20001225
K78-063	63	68	9.7	d	66.2	64.8	PH6504	20001227
K78-063/1	63	68	15	14.8	66.2	64.8	PH6504	20001228
K78-065	65	70	15	14.8	68.2	66.8	PH6504	20001229
K78-065/1	65	70	9.7	9.5	68.2	66.8	PH6504	20001230
K78-070	70	75	9.7	9.5	73.2	71.8	PH6504	20001232
K78-070/1	70	75	15	14.8	73.2	71.8	PH6504	20001233
K78-075	75	80	9.7	9.5	78.2	76.8	PH6504	20001235
K78-075/1	75	80	15	14.8	78.2	76.8	PH6504	20001236
K78-080	80	85	9.7	9.5	83.2	81.8	PH6504	20001239
K78-080/1	80	85	15	14.8	83.2	81.8	PH6504	20001240
K78-085	85	90	9.7	9.5	88.2	86.8	PH6504	20001242
K78-085/1	85	90	15	14.8	88.2	86.8	PH6504	20001243
K78-090	90	95	15	14.8	93.2	91.8	PH6504	20001245
K78-090/1	90	95	9.7	9.5	93.2	91.8	PH6504	20001246
K78-095	95	100	9.7	9.5	98.2	96.8	PH6504	20001248
K78-095/1	95	100	15	14.8	98.2	96.8	PH6504	20001249
K78-100	100	105	15	14.8	103.2	101.8	PH6504	20001251
K78-100/1	100	105	9.7	9.5	103.2	101.8	PH6504	20001252
K78-105	105	110	9.7	9.5	108.2	106.8	PH6504	20001268
K78-105/1	105	110	15	14.8	108.2	106.8	PH6504	20001269
K78-110	110	115	9.7	9.5	113.2	111.8	PH6504	20001298
K78-110/1	110	115	15	14.8	113.2	111.8	PH6504	20001299
K78-110/2	110	115	8.1	7.9	113.2	111.8	PH6504	20001300
K78-115	115	120	9.7	9.5	118.2	116.8	PH6504	20001318
K78-115/1	115	120	15	14.8	118.2	116.8	PH6504	20001319
K78-115/2	115	120	8.1	7.9	118.2	116.8	PH6504	20001320
K78-120	120	125	9.7	9.5	123.2	121.8	PH6504	20001322
K78-120/1	120	125	15	14.8	123.2	121.8	PH6504	20001323
K78-120/2	120	125	8.1	7.9	123.2	121.8	PH6504	20001324
K78-125	125	130	9.7	9.5	128.2	126.8	PH6504	20001326
K78-125/1	125	130	15	14.8	128.2	126.8	PH6504	20001327
K78-125/3	125	130	14.2	14	128.2	126.8	PH6504	20001329
K78-130	130	135	9.7	9.5	133.2	131.8	PH6504	20001330
K78-130/1	130	135	15	14.8	133.2	131.8	PH6504	20001331
K78-130/3	130	135	8.1	7.9	133.2	131.8	PH6504	20001333
K78-135	135	140	9.7	9.5	138.2	136.8	PH6504	20001334
K78-135/1	135	140	15	14.8	138.2	136.8	PH6504	20001335
K78-135/2	135	140	8.1	7.9	138.2	136.8	PH6504	20001336
K78-140	140	145	9.7	9.5	143.2	141.8	PH6504	20001337
K78-140/1	140	145	15	14.8	143.2	141.8	PH6504	20001338
K78-140/3	140	145	20	19.8	143.2	141.8	PH6504	20001340
K78-145	145	150	9.7	9.5	148.2	146.8	PH6504	20001342
K78-145/1	145	150	15	14.8	148.2	146.8	PH6504	20001343
K78-150	150	155	15	14.8	153.2	151.8	PH6504	20001344
K78-150/1	150	155	9.7	9.5	153.2	151.8	PH6504	20001345
K78-150/2	150	155	12.5	12.3	153.2	151.8	PH6504	20001346
K78-155	155	160	9.7	9.5	158.2	156.8	PH6504	20001347
K78-155/1	155	160	15	14.8	158.2	156.8	PH6504	20001348
K78-160	160	165	9.7	9.5	163.2	161.8	PH6504	20001349
K78-160/1	160	165	15	14.8	163.2	161.8	PH6504	20001350
K78-164	164	170	9.7	9.5	167.6	166.4	PH6504	20001351
K78-165	165	170	9.7	9.5	168.2	166.8	PH6504	20001352
K78-165/1	165	170	15	14.8	168.2	166.8	PH6504	20001353
K78-170	170	175	9.7	9.5	173.2	171.8	PH6504	20001354
K78-170/1	170	175	15	14.8	173.2	171.8	PH6504	20001355
K78-174	174	180	15	14.8	177.6	176.4	PH6504	20001356
K78-175	175	180	9.7	9.5	178.2	176.8	PH6504	20001357
K78-175/1	175	180	15	14.8	178.2	176.8	PH6504	20001358
K78-180	180	185	15	14.8	183.2	181.8	PH6504	20001359
K78-180/1	180	185	9.7	9.5	183.2	181.8	PH6504	20001361
K78-184	184	190	15	14.8	187.6	186.4	PH6504	20001362
K78-185	185	190	9.7	9.5	188.2	186.8	PH6504	20001363
K78-185/1	185	190	15	14.8	188.2	186.8	PH6504	20001364
K78-190	190	195	9.7	9.5	193.2	191.8	PH6504	20001365
K78-190/1	190	195	15	14.8	193.2	191.8	PH6504	20001366
K78-194	194	200	20	19.8	197.6	196.4	PH6504	20001369
K78-195	195	200	9.7	9.5	198.2	196.8	PH6504	20001370
K78-195/1	195	200	15	14.8	198.2	196.8	PH6504	20001371
K78-209	209	215	20	19.8	212.6	211.4	PH6504	20001418
K78-210	210	215	25	24.5	213.2	211.8	PH6504	20001424
K78-215	215	220	15	14.8	218.2	216.8	PH6504	20006643
K78-219	219	225	20	19.8	222.6	221.4	PH6504	20001434
K78-224	224	230	25	24.5	227.6	226.4	PH6504	20001435
K78-229	229	235	20	19.8	232.6	231.4	PH6504	20001436
K78-234	234	240	25	24.5	237.6	236.4	PH6504	20001437
K78-235	235	240	25	24.5	238.2	236.8	PH6504	20001438
K78-240	240	248	25	24.5	245	243	PH6504	20001439
K78-244	244	250	25	24.5	247.6	246.4	PH6504	20001440
K78-245/1	245	250	25	24.5	248.2	246.8	PH6504	20001442
K78-245/2	245	250	15	14.8	248.2	246.8	PH6504	20001443
K78-245/3	245	250	20	19.8	248.2	246.8	PH6504	20001444
K78-250	250	255	40	39.5	253.2	251.8	PH6504	20001445
K78-254	254	260	25	24.5	257.6	256.4	PH6504	20001446
K78-254/1	254	260	30	29.5	257.6	256.4	PH6504	20001447
K78-255	255	260	15	14.8	258.2	256.8	PH6504	20006644
K78-260	260	265	25	24.5	263.2	261.8	PH6504	20001448
K78-275	275	280	15	14.8	278.2	276.8	PH6504	20006645
K78-279	279	285	25	24.5	282.6	281.4	PH6504	20001449
K78-280	280	285	25	24.5	283.2	281.8	PH6504	20001450
K78-294	294	300	35	34.5	297.6	296.4	PH6504	20001451
K78-295	295	300	25	24.5	298.2	296.8	PH6504	20001452
K78-315	315	320	25	24.5	318.2	316.8	PH6504	20001454
