XT200 - YÜKSEK DAYANIMLI BOĞAZ KEÇESI
XT200 - YÜKSEK DAYANIMLI BOĞAZ KEÇESI
XT200 - YÜKSEK DAYANIMLI BOĞAZ KEÇESI
Array

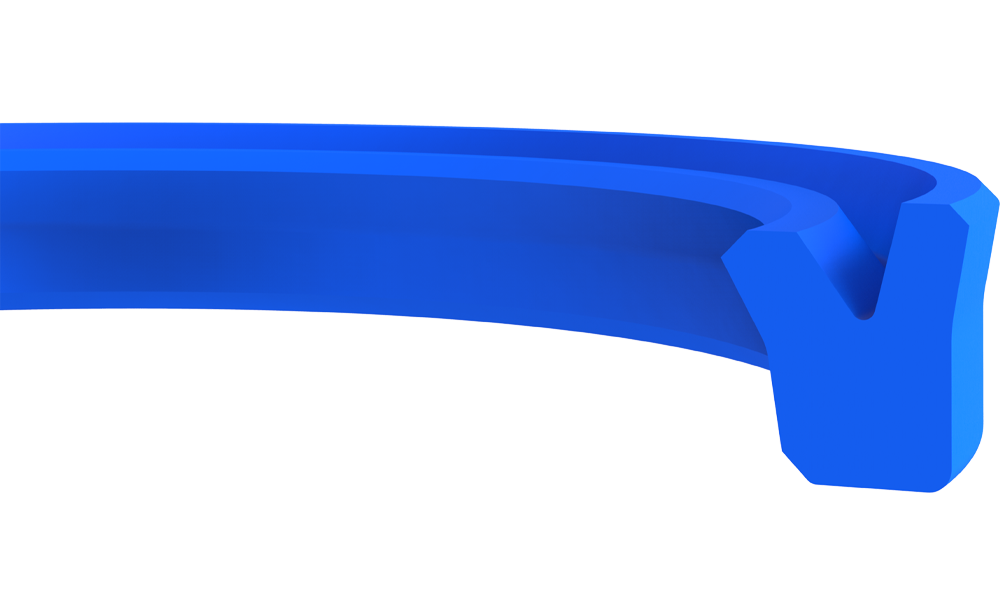

XT200® boğaz sızdırmazlık elemanı, uzun stroklu, yüksek basınç olan ve akma boşluğu yüksek olabilecek sistemlerde geleneksel nutringlere göre güvenle çalışabilen geometrik bir yapıya sahiptir.
Avantajları
• Üstün statik ve dinamik sızdırmazlık özelliği
• Uzun hizmet ömrü
• İnce yağ filmi kalınlığı
• Yüksek akma dayanımı
• Uzun hizmet ömrü
• İnce yağ filmi kalınlığı
• Yüksek akma dayanımı
Uygulama Alanları
• İş makineleri sektörü
• Liftler
• Enjeksiyon tezgahları
• Forkliftler
• Araç üstü sektörü
• Tarım sektörü
• Liftler
• Enjeksiyon tezgahları
• Forkliftler
• Araç üstü sektörü
• Tarım sektörü
Malzeme
Kodu
Basınç
(max) bar
(max) bar
Sıcaklık
(max) °C
(max) °C
Kayma Hızı
(max)- m/s
(max)- m/s
PU
PU9401
400
-35/+110
0.5
| d (f8) | D (H10) | L (+0.2/-0) | H | C | MALZEME | KASTAŞ KOD | ||
|---|---|---|---|---|---|---|---|---|
| XT200-018 | 18 | 24 | 5.2 | 4.7 | 4 | PU9401 | 10035514 | |
| XT200-020 | 20 | 28 | 6.3 | 5.7 | 4 | PU9401 | 10035515 | |
| XT200-020/1 | 20 | 30 | 7 | 6.3 | 5 | PU9401 | 10035516 | |
| XT200-020/2 | 20 | 30 | 9 | 8 | 5 | PU9401 | 10035517 | |
| XT200-022 | 22 | 30 | 6.3 | 5.7 | 4 | PU9401 | 10035518 | |
| XT200-025 | 25 | 33 | 6.3 | 5.7 | 4 | PU9401 | 10035519 | |
| XT200-025/1 | 25 | 35 | 9 | 8 | 5 | PU9401 | 10035520 | |
| XT200-025/2 | 25 | 33 | 5.6 | 5 | 4 | PU9401 | 10035521 | |
| XT200-028 | 28 | 36 | 6.3 | 5.7 | 4 | PU9401 | 10035522 | |
| XT200-028/1 | 28 | 38 | 9 | 8 | 5 | PU9401 | 10035523 | |
| XT200-030 | 30 | 38 | 6.3 | 5.7 | 4 | PU9401 | 10035524 | |
| XT200-030/1 | 30 | 40 | 9 | 8 | 5 | PU9401 | 10035525 | |
| XT200-030/2 | 30 | 45 | 11 | 10 | 5.5 | PU9401 | 10035526 | |
| XT200-030/3 | 30 | 40 | 6.7 | 6 | 4.5 | PU9401 | 10035527 | |
| XT200-032 | 32 | 40 | 6.3 | 5.7 | 4 | PU9401 | 10035528 | |
| XT200-032/1 | 32 | 47 | 11 | 10 | 5.5 | PU9401 | 10035529 | |
| XT200-035 | 35 | 43 | 6.3 | 5.7 | 4 | PU9401 | 10035530 | |
| XT200-035/1 | 35 | 45 | 9 | 8 | 5 | PU9401 | 10035531 | |
| XT200-035/2 | 35 | 50 | 11 | 10 | 5.5 | PU9401 | 10035532 | |
| XT200-035/3 | 35 | 45 | 6.7 | 6 | 4.5 | PU9401 | 10035533 | |
| XT200-036 | 36 | 44 | 6.3 | 5.7 | 4.5 | PU9401 | 10035534 | |
| XT200-040 | 40 | 50 | 9 | 8 | 5 | PU9401 | 10035535 | |
| XT200-040/1 | 40 | 48 | 6.3 | 5.7 | 4 | PU9401 | 10035536 | |
| XT200-040/2 | 40 | 48 | 9 | 8 | 4 | PU9401 | 10035537 | |
| XT200-040/3 | 40 | 50 | 8 | 7.3 | 5 | PU9401 | 10035538 | |
| XT200-040/4 | 40 | 50 | 10 | 9 | 5 | PU9401 | 10035539 | |
| XT200-040/5 | 40 | 50 | 11 | 10 | 5 | PU9401 | 10035540 | |
| XT200-040/6 | 40 | 55 | 11 | 10 | 5.5 | PU9401 | 10035541 | |
| XT200-040/7 | 40 | 50 | 6.7 | 6 | 4.5 | PU9401 | 10035542 | |
| XT200-045 | 45 | 53 | 9 | 8 | 4.5 | PU9401 | 10035543 | |
| XT200-045/1 | 45 | 55 | 9 | 8 | 5 | PU9401 | 10035544 | |
| XT200-045/2 | 45 | 60 | 11 | 10 | 5.5 | PU9401 | 10035545 | |
| XT200-045/3 | 45 | 55 | 6.7 | 6 | 4.5 | PU9401 | 10035546 | |
| XT200-045/4 | 45 | 53 | 6.3 | 5.7 | 4.5 | PU9401 | 10035547 | |
| XT200-050 | 50 | 60 | 8 | 7.3 | 4.5 | PU9401 | 10035548 | |
| XT200-050/1 | 50 | 65 | 11 | 10 | 5.5 | PU9401 | 10035549 | |
| XT200-050/2 | 50 | 58 | 9 | 8 | 4 | PU9401 | 10035550 | |
| XT200-050/3 | 50 | 60 | 9 | 8 | 4.5 | PU9401 | 10035551 | |
| XT200-050/4 | 50 | 60 | 11 | 10 | 4.5 | PU9401 | 10035552 | |
| XT200-050/5 | 50 | 65 | 12 | 11 | 5.5 | PU9401 | 10035553 | |
| XT200-050/6 | 50 | 60 | 6.7 | 6 | 4.5 | PU9401 | 10035554 | |
| XT200-055 | 55 | 65 | 8 | 7.3 | 5 | PU9401 | 10035555 | |
| XT200-055/1 | 55 | 65 | 9 | 8 | 5 | PU9401 | 10035556 | |
| XT200-055/2 | 55 | 70 | 11 | 10 | 5.5 | PU9401 | 10035557 | |
| XT200-055/3 | 55 | 65 | 6.7 | 6 | 4.5 | PU9401 | 10035558 | |
| XT200-055/4 | 55 | 75 | 13 | 12 | 5 | PU9401 | 10035559 | |
| XT200-056 | 56 | 66 | 9 | 8 | 5 | PU9401 | 10035560 | |
| XT200-056/1 | 56 | 66 | 11 | 10 | 5 | PU9401 | 10035561 | |
| XT200-056/2 | 56 | 71 | 11 | 10 | 5.5 | PU9401 | 10035562 | |
| XT200-060 | 60 | 68 | 9 | 8 | 4.5 | PU9401 | 10035563 | |
| XT200-060/1 | 60 | 70 | 8 | 7.3 | 5 | PU9401 | 10035564 | |
| XT200-060/2 | 60 | 70 | 9 | 8 | 5 | PU9401 | 10035565 | |
| XT200-060/3 | 60 | 75 | 11 | 10 | 5.5 | PU9401 | 10035566 | |
| XT200-060/4 | 60 | 70 | 6.7 | 6 | 5 | PU9401 | 10035567 | |
| XT200-060/5 | 60 | 80 | 13 | 12 | 5.5 | PU9401 | 10035568 | |
| XT200-063 | 63 | 78 | 11 | 10 | 5.5 | PU9401 | 10035569 | |
| XT200-065 | 65 | 75 | 9 | 8 | 5 | PU9401 | 10035570 | |
| XT200-065/1 | 65 | 80 | 13 | 12 | 5.5 | PU9401 | 10035571 | |
| XT200-065/2 | 65 | 75 | 6.7 | 6 | 5 | PU9401 | 10035572 | |
| XT200-065/3 | 65 | 85 | 13 | 12 | 6 | PU9401 | 10035573 | |
| XT200-070 | 70 | 80 | 9 | 8 | 5 | PU9401 | 10035574 | |
| XT200-070/1 | 70 | 82 | 9.6 | 8.6 | 6 | PU9401 | 10035575 | |
| XT200-070/2 | 70 | 90 | 13 | 12 | 6 | PU9401 | 10035576 | |
| XT200-070/3 | 70 | 80 | 6.7 | 6 | 5 | PU9401 | 10035577 | |
| XT200-075 | 75 | 90 | 11 | 10 | 5.5 | PU9401 | 10035578 | |
| XT200-075/1 | 75 | 85 | 6.7 | 6 | 4.5 | PU9401 | 10035579 | |
| XT200-080 | 80 | 90 | 11 | 10 | 4.5 | PU9401 | 10035580 | |
| XT200-080/1 | 80 | 95 | 12.5 | 11.5 | 5.5 | PU9401 | 10035581 | |
| XT200-080/2 | 80 | 100 | 13 | 12 | 6 | PU9401 | 10035582 | |
| XT200-080/3 | 80 | 90 | 8 | 7.3 | 4.5 | PU9401 | 10035583 | |
| XT200-080/4 | 80 | 90 | 6.7 | 6 | 4.5 | PU9401 | 10035584 | |
| XT200-085 | 85 | 100 | 10 | 9 | 5.5 | PU9401 | 10035585 | |
| XT200-085/1 | 85 | 95 | 9.6 | 8.6 | 4.5 | PU9401 | 10035586 | |
| XT200-085/2 | 85 | 105 | 13 | 12 | 6 | PU9401 | 10035587 | |
| XT200-085/3 | 85 | 100 | 11 | 10 | 5.5 | PU9401 | 10035588 | |
| XT200-085/4 | 85 | 97 | 9.7 | 8.7 | 5 | PU9401 | 10035589 | |
| XT200-090 | 90 | 105 | 11 | 10 | 5.5 | PU9401 | 10035590 | |
| XT200-090/1 | 90 | 110 | 13 | 12 | 6 | PU9401 | 10035591 | |
| XT200-090/2 | 90 | 105 | 10 | 9 | 5.5 | PU9401 | 10035592 | |
| XT200-095 | 95 | 110 | 10 | 9 | 5.5 | PU9401 | 10035593 | |
| XT200-095/1 | 95 | 110 | 11 | 10 | 5.5 | PU9401 | 10035594 | |
| XT200-100 | 100 | 115 | 10 | 9 | 5.5 | PU9401 | 10035595 | |
| XT200-100/1 | 100 | 115 | 11 | 10 | 5.5 | PU9401 | 10035596 | |
| XT200-100/2 | 100 | 115 | 13 | 12 | 5.5 | PU9401 | 10035597 | |
| XT200-100/3 | 100 | 120 | 13 | 12 | 6 | PU9401 | 10035598 | |
| XT200-105 | 105 | 120 | 10 | 9 | 5.5 | PU9401 | 10035599 | |
| XT200-105/1 | 105 | 120 | 11 | 10 | 5.5 | PU9401 | 10035600 | |
| XT200-110 | 110 | 125 | 10 | 9 | 5.5 | PU9401 | 10035601 | |
| XT200-110/1 | 110 | 130 | 16 | 14.5 | 6 | PU9401 | 10035602 | |
| XT200-110/2 | 110 | 125 | 11 | 10 | 5.5 | PU9401 | 10035603 | |
| XT200-115 | 115 | 130 | 10 | 9 | 5.5 | PU9401 | 10035604 | |
| XT200-115/1 | 115 | 130 | 11 | 10 | 5.5 | PU9401 | 10035605 | |
| XT200-120 | 120 | 140 | 16 | 14.5 | 6 | PU9401 | 10035606 | |
| XT200-125 | 125 | 140 | 10 | 9 | 5.5 | PU9401 | 10035607 | |
| XT200-130 | 130 | 145 | 11 | 10 | 5.5 | PU9401 | 10035608 | |
| XT200-130/1 | 130 | 150 | 13 | 12 | 6 | PU9401 | 10035609 | |
| XT200-140 | 140 | 155 | 10 | 9 | 5.5 | PU9401 | 10035611 | |
| XT200-140/1 | 140 | 160 | 13 | 12 | 6 | PU9401 | 10035612 | |
| XT200-145 | 145 | 160 | 11 | 10 | 5.5 | PU9401 | 10035613 | |
| XT200-150 | 150 | 170 | 16 | 14.5 | 6 | PU9401 | 10035614 | |
| XT200-150/1 | 150 | 170 | 13 | 12 | 6 | PU9401 | 10035615 | |
| XT200-150/2 | 150 | 165 | 11 | 10 | 5.5 | PU9401 | 10035616 | |
| XT200-160 | 160 | 180 | 16 | 14.5 | 6 | PU9401 | 10035617 | |
| XT200-160/1 | 160 | 180 | 13 | 12 | 6 | PU9401 | 10035618 | |
| XT200-170 | 170 | 190 | 16 | 14.5 | 6 | PU9401 | 10035619 | |
| XT200-180 | 180 | 200 | 13 | 12 | 6 | PU9401 | 10035620 | |
| XT200-180/1 | 180 | 200 | 16 | 14.5 | 6 | PU9401 | 10035621 | |
| XT200-190 | 190 | 210 | 16 | 14.5 | 6 | PU9401 | 10035622 | |
| XT200-200 | 200 | 220 | 16 | 14.5 | 6 | PU9401 | 10035623 | |
| XT200-220 | 220 | 240 | 16 | 14.5 | 6 | PU9401 | 10035624 | |
| XT200-220/1 | 220 | 240 | 13 | 12 | 6 | PU9401 | 10035625 | |
| XT200-240 | 240 | 260 | 16 | 14.5 | 6 | PU9401 | 10035626 | |
| XT200-250 | 250 | 270 | 16 | 14.5 | 6 | PU9401 | 10035627 |
